Lutz Drum Pumps
Product Summary


Lutz

Products

Lutz Drum Pumps
Lutz Meters
Lutz Centrifugals
Lutz AOD Pumps
Lutz Nozzles
Lutz Accessories

Brands
Lutz Pumps
Gespasa Equipment
Cucchi Pumps
Pollard Pumps
Thoelen Pumps
Piusi Equipment
Adam Pumps

Hand Pumps

Motor Driven

Drum & Container Pumps



 Back to Top

 Tailor Made Solutions to Container Decanting

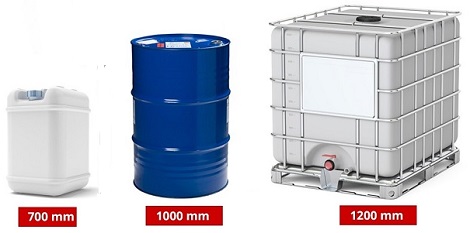

Standard Pump Tube Lengths

L=700mmL=1000mmL=1200mm
Special lengths 200mm to 2500mm on request

Back to Top

Industrial Non Explosion Proof Pumps

Professional solutions for handling of neutral, aggressive and corrosive liquids in drums, containers and other vessels.



  • MOTORS: Choice of Several Motors depending on the S.G. and viscosity of the liquids as well as the type of environment in which the pump will be used:

    • MI4 - 230V Versatile entry level industrial electric motor

      Light & Convenient

      Powerful with good price vs. performance ratio

      Speed control optional on the MI4-E models

      Excellent for warehouse, stores use where environments are free of dust and fumes



    • MAII - 230V Robust industrial electric motor

      Choice of 3 power ratings

      Rigid & Robust design

      Electrically double insulated

      Double walled housing for optimal external fan cooling

      Excellent for harsh site work



    • MD-2 - Air powered motor, simple and efficient

      Explosion Proof compact design

      Overload proof

      Delivery flow can be easily regulated

      Optional MD-1 without handle & trigger for automated systems



    • B4/GT - 400V the long distance runner

      24/7 smooth & quiet operation

      Great for permanent installation

      On request, also available 525V



Model

Flow*

up to

l/min

L (R)

Head*

up to

mWc

L (R)

Viscosity**

up to

cPs

L (R)

Density**

up to

kg/dm

L (R)

MI 4 500W 230V IP24

117 (210)19 (10)500 (150)1.4 (1.1)
MA II3 460W 230V IP54 TEFC

MA II5 575W 230V IP54 TEFC

MA II7 795W 230V IP54 TEFC

95 (178)

100 (190)

115 (210)

14 (9)

16 (10)

20 (13)

500 (150)

800 (350)

800 (350)

1.6 (1.2)

1.8 (1.3)

1.9 (1.4)

MD-2 400W AIR (ATEX Ex II2G)110 (210)20 (12)850 (600)1.9 (1.4)
B4/GT 750W IP55 400V100 (180)12 (13)400 (400)2.2 (2.0)

* Water @ 20C - for SS/HC Tubes (lower values for PP/PVDF tubes)

** Light Oil @ 20C - for PP/PVDF tubes (lower values for SS/HC tubes)

L = Radial flow impeller, supplied as standard (Best balance of flow/head/viscosity & density transfer)

(R) = Axial flow rotor, on request only (High flow with compromised head/viscosity & density transfer)

  • PUMP TUBES: Choice of 5 Different Materials of Pump Construction, each material selected for a specific type of liquid:



    • PVDF - Polyvinylidene fluoride (White Plastic)

      PVDFPPALUSS

      Highly Corrosive Fluids

      Sulphuric Acid, Nitric Acid, Sodium Hypochlorite



    • PP - Polypropylene (Yellow Plastic)

      Corrosive & Neutral Fluids

      Hydrochloric Acid, Sodium Chloride, Sodium Hydroxide



    • ALU - Aluminium/PVDF

      Neutral Non-Flammable Fluids

      Mineral Oils, Diesel, Potassium Nitrate



    • SS - Stainless Steel (1.4571)

      Corrosive, Neutral & Non-Flammable Fluids

      Juices, Edible Oils



    • HC - Hastelloy C (2.4610)

      Highly Corrosive & Non-Flammable Fluids

      Hydrofluoric Acid, Bromine, Perchloric Acid



  • Repair and service friendly design with a small number of components.

  • Pumps do not have seals as a standard but can be fitted with axial face seals for special applications.

Back to Top

Explosion Proof Pumps

Excellent solutions for handling easily flammable liquids and pumping in environments with explosive atmospheres. Developed and designed, tested and certified in compliance with ATEX100a.

  • MOTORS: Choice of Several Motors depending on the S.G. and viscosity of the liquids as well as the type of environment in which the pump will be used:

    • ME II - 230V ATEX Robust industrial electric motor

      Choice of 4 power ratings

      Explosion proof in compliance with Atex & IEC Ex

      Compliance level II 2 G Ex de IIC T5 or T6

      Low voltage release, switches off automatically should mains fail

      Rigid & Robust design

      Electrically double insulated

      Double walled housing for optimal external fan cooling

      Excellent for harsh site work



    • MD-2 - Air powered motor, simple and efficient

      Explosion Proof compact design

      Compliance Atex II 2 G

      Overload proof

      Delivery flow can be easily regulated

      Optional MD-1 without handle & trigger for automated systems

      Optional MD-3 for higher flammability protection



Model

Flow*

up to

l/min

L (R)

Head*

up to

mWc

L (R)

Viscosity**

up to

cPs

L (R)

Density**

up to

kg/dm

L (R)

ME II3 460W 230V IP54 ATEX

ME II5 575W 230V IP54 ATEX

ME II7 795W 230V IP54 ATEX

ME II8 930W 230V IP54 ATEX

95 (178)

100 (190)

115 (210)

123 (243)

14 (9)

16 (10)

20 (13)

26 (15)

350 (150)

700 (550)

500 (400)

750 (650)

1.6 (1.2)

1.8 (1.3)

1.9 (1.4)

1.9 (1.4)

MD-2 400W AIR (ATEX Ex II2G)110 (210)20 (12)500 (400)1.8 (1.3)

* Water @ 20C - for SS/HC tubes

** Light Oil @ 20C - for SS/HC tubes

L = Radial flow impeller, supplied as standard (Best balance of flow/head/viscosity & density transfer)

(R) = Axial flow rotor, on request only (High flow with compromised head/viscosity & density transfer)

  • PUMP TUBES: Choice of 2 Different Materials of Pump Construction, each material

    SSHC

     selected for a specific type of liquid:



    • SS - Stainless Steel (1.4571)

      Corrosive, Neutral & Highly-Flammable Fluids

      Solvents, Alcohols, fuels

    • HC - Hastelloy C (2.4610)

      Highly Corrosive & Highly-Flammable Fluids

      Hydrofluoric Acid, Bromine, Perchloric Acid





  • Repair and service friendly design with a small number of components.

  • Pumps do not have seals as a standard but can be fitted with axial face seals for special applications.







Back to Top

Laboratory Drum Pumps

Ideal for labs and an entry level pump for smaller volume handling of;

Non-Flammable neutral or aggressive and corrosive liquids in drums, containers and other vessels.

  • Choice of 3 Different Materials of Pump Construction, each material selected for a specific type of liquid:

    • PP - Polypropylene (Yellow Plastic)

    • PVDF - Polyvinylidene fluoride (White Plastic)

    • SS - Stainless Steel (1.4571)

  • Repair and service friendly design with a small number of components.

  • Available in a 500mm or 1000mm length (700mm On Request)

  • Pumps do not have seals

  • Pumping performance:

    • Flow rate up to 75 l/min

    • Delivery up to 7 mWC



  • Fluid properties:

    • Density up to 1.3 kg/dm3

    • Viscosity up to 300 cPs



  • Integrated 230V motor 200W with variable speed on/off control switch



Back to Top

High Viscosity Pumps

Professional solutions for handling of highly viscose and sticky liquids in drums, containers and other vessels.

  • Used to pump paint, dirty oils, cosmetics, toothpaste, honey & molasses and even cheese  spread.

  • Repair and service friendly design with a small number of components and can be stripped for cleaning by loosening one nut.

  • PUMP TUBES: High performance in pumping. Performance will be dependent on each individual fluid's properties.

    • Choice of 5 Different Flow Rates:

      Standard Flow of either 25 or 50 l/min

      SR

      Range

      D

      Range

      On special request 12, 75 or 120 l/min

      Delivery up to 10 bar.

      Viscosity up to 100 000 cPs



    • Materials of Construction:

      SS - Stainless Steel (1.4571) with either NBR, FPM or PTFE stators

      Pumps have mechanical seal as a standard but can also be fitted with special seals or PTFE pack gland.



    • Special Constructions;

      PURE - FDA approved for foods, cosmetics & pharmaceuticals

      3A - Sanitary where extreme care is required.

      MS - Galvanised Steel with either NBR, FPM or PTFE stators.



  • MOTORS: Choice of Several Motors depending on the S.G. and viscosity of the liquids as well as the type of environment in which the pump will be used:

    • SR Range: using Universal Lutz Motors;

      • MI4 - Versatile entry level industrial 220V electric motor.

      • MAII - Robust industrial 220V electric motor with a choice of   3 power ratings.

      • MEII - Robust industrial Explosion Proof 220V electric motor with a choice of 4 power ratings.

      • MD - Universal Air powered motors

    • D Range: using IEC standard Motors;

      • TEFC quiet operation 380V or 525V electric motors

      • TEFC explosion proof motors in 380V and 525V

      • DA - Air powered motors, simple and efficient

      • IEC motors with reduction drives



Back to Top

Mixing Drum Pumps

Making sure neutral, aggressive and corrosive liquids in drums or containers are thoroughly mixed before decanting.

  • Choice of 2 Different Materials of Pump Construction, each material selected for a specific type of liquid:

    • PP - Polypropylene (Yellow / Grey Plastic)Mix & Pump

    • SS - Stainless Steel (1.4571)



  • Repair and service friendly design with a small number of components.



  • Pumps are available without seals or with axial face seals.



  • High performance in pumping:

    • Flow rate up to 210 l/min

    • Delivery up to 22 mWC



  • Fluid properties:

    • Density up to 1.9 kg/dm3

    • Viscosity up to 850 cPs



  • Choice of Several Motors depending on the S.G. and viscosity of the liquids as well as the type of environment in which the pump will be used:

    • MI4 - Versatile entry level industrial 220V electric motor.

    • MAII - Robust industrial 220V electric motor with a choice of 3 power ratings.

    • MEII - Robust industrial Explosion Proof 220V electric motor with a choice of 4 power ratings.

    • MD - Air powered motor, simple and efficient

    • B4/GT - 24/7 quiet operation 380V or 525V electric Motor



Back to Top

Complete Drainage Drum Pumps

Maximum drum drainage of valuable liquid and reduced residue of aggressive and corrosive liquids.

  • Choice of 2 Different Materials of Pump Construction, each material selected for a specific type of liquid:

    • PP - Polypropylene (Yellow / Grey Plastic)

    • SS - Stainless Steel (1.4571)



  • Repair and service friendly design with a small number of components.



  • Pumps fitted with axial face seals.



  • High performance in pumping:

    • Flow rate up to 210 l/min

    • Delivery up to 22 mWC



  • Fluid properties:

    • Density up to 1.9 kg/dm3

    • Viscosity up to 900 cPs



  • Choice of Several Motors depending on the S.G. and viscosity of the liquids as well as the type of environment in which the pump will be used:

    • MI4 - Versatile entry level industrial 220V electric motor.

    • MAII - Robust industrial 220V electric motor with a choice of 3 power ratings.

    • MEII - Robust industrial Explosion Proof 220V electric motor with a choice of 4 power ratings.

    • MD - Air powered motor, simple and efficient

    • B4/GT - 24/7 quiet operation 380V or 525V electric Motor



Back to Top

Optional Accessories

  1. Chemical nozzles

  2. Hose tail and wing nut

  3. Rigid spout

  4. Flow meters

  5. Pump/Meter connectors

  6. Normal drum adapter

  7. Emission proof drum adapter

  8. Pump clamp

  1. Foot strainer

  2. Ex Earthing cable

  3. Pump wall bracket

  4. Chemical hosing

  5. Ex Hose connections

  6. Normal SS hose clamps

  7. Quick couplers (Female)

  8. Quick couplers (Male)

  9. Connection adapters

Back to Top
