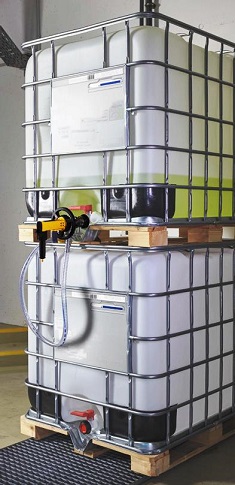

B200 - Bottom Outlet IBC Container Pumps

Very compact alternative when containers are stored above each other or in cases where access from the top is just not possible.

The bottom drain of the IBC can be used to empty the container, by directly connecting the horizontal Lutz B200 to the bottom outlet valve

  • Compact performance, small space requirement.

  • Liquid examples: Thin-bodied mineral oil products, emulsions, solvents, aqueous solutions, alkalis and acids, vegetable oils, cleansing- and cosmetic care products, disinfectants..........

  • Centrifugal pump with axial impeller in compact design.

  • Directly connected to the bottom outlet valve of the IBC with standard union nut (S60 x 6)

  • Significantly better hydraulic capacity in comparison to hydrostatic outlet

  • Easy disassembly, two-piece pump with clamp connections acc. to DIN 32676

  • No suction hose necessary, thus significantly lower product release when disconnecting

  • Operation against closed valves (e.g. ball valve, nozzle) is possible at any time

  • Pumping capacity up to 244 l/min

  • Heads up to 15m. (wc)

  • Viscosity up to 650 cPs

  • Specific gravity up to 2.8 kg/dm

  • Universal interchangeable motor drive concept;

    • MI 4E, MA II and ME II Ex - 230V 1~phase

    • MD1xL and MD2xL - Air driven



  • Pump Construction in 2 options;

    • SS 316Ti (1.4571) - 100C fluid temperature.

    • PVDF/HC - 100C fluid temperature.

  • Also Available on Request;

    • PURE SS version with Tri-Clamp connections

    • Explosion proof versions for applications in Ex-areas (zone 1 and 2).

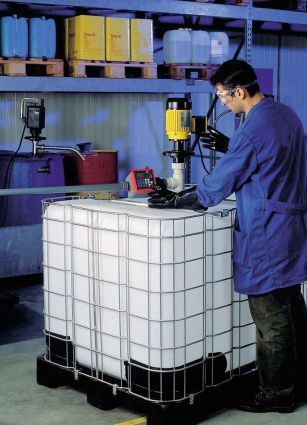

B50 Vertical IBC Container & Sump Pumps

Where a conventional drum pump is not fast enough, the B50 will decrease the decanting time substantially.

  • High pumping capacity.

  • Flow rates up to 200 l/min

  • High Efficiency 3-Stage impeller.

  • Heads up to 22m

  • Smooth Running: 0.75kW IP54 motor

  • Low space requirement

  • Simpler, quicker & safer handling of fluids from ISO 1000L bulk flow bins, storage containers, sumps & tanks.

  • Constructed from chemical resistant PP/HC

  • Viscosity up to 100 cPs

  • Specific gravity up to 1.8 kg/dm

  • 40C Maximum fluid temperature



  • Also in the range with higher specifications;

    • B6 PP or SS vertical pumps

    • B80 Vertical spindle pumps
