Product Range

Manufactured in Spain

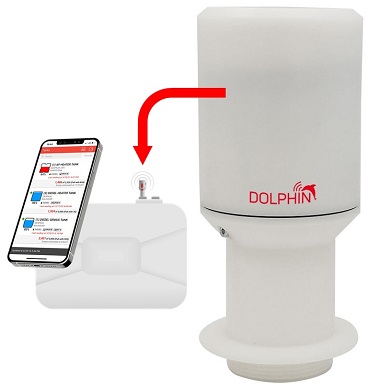

DOLPHIN - GPRS(3G) Level Gauge

Codes:

DOLPHIN LEVEL GAUGE: 258200300

DOLPHIN DIESELPLUS FEE: 670800500 (App. Annual Access Licence Fee)

Ultra Sonic Level Gauge, no physical contact with fluids
Make periodic enquiry of the fluid level in your tank.
Wireless Connectivity: GPRS (GSM SIM included)
Level Viewing & Settings:
- App: DieselPlus Tanks on Android or IOs
- Website: www.dieselplus.net
Suitable for any non-flammable fluids
IP-66 weather proof
Suited to Climates -10°C to +50°C
Tank Depth: 100mm to 4000mm
Upload Setting: 1 per hour or 2 per day
Powered: 3.6 V lithium battery (4 years)
Reading resolution: 5 mm ± 1% of mm
DieselPlus Communication offers:
- The reading of the tank level
- Multiaccess from different devices

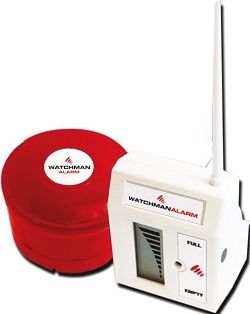

WA - Alarm Level Indicator

Code: 808316013 ../Picture & Docgespaspa_808316013_WA ALARM LEVEL INDICATOR

Ultra Sonic Level Gauge, no physical contact with fluids.

For diesel, oil, water and ADBLUE storage tanks.

Quick and easy to install.

Constantly measuring the level of fluid in the tank.

Suitable for steel or plastic tanks:
- Minimum diameter 600mm
- Measures tanks up to 3 meters high.

The TRANSMITTER:
- Fitted to a 2" opening on the top of the tank.
- Battery Operated.
The RECEIVER:
- Can be located up to 200m away.
- Mains powered 230V.
- LCD screen, Liquid level display.
- Alarm When fluid drops below 10% of level.
- Alarm When rate of drop exceeds 3cm/min. (Leak or Theft Warning).

Code: 801901001 gespasa_801901001_level_indicator

Tank fuel height gauge.

Suitable for tanks with a maximum diameter of 2 m (15,000 litres).

Screw connection onto the tank: 1½" BSP thread

Indicator is actuated by float that is put into the tank.

Easy and quick reading through the clock, expressed in centimetres.

There are two scales easily exchangeable:

One for tank heights of 250 cm.

Weatherproof

Easy assembly

Does not need any maintenance.

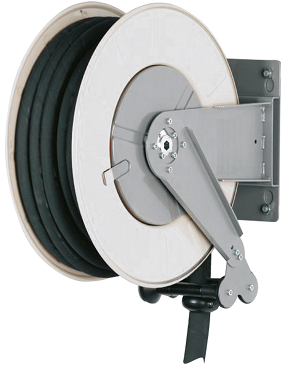

Code: 807303020

The wall bracket and the side frame are made in one single piece to increase the stability.
For the supply of diesel, lubricant, compressed air and water.
The delivery arm can be mounted in different positions.
Automatic rewind, spring-driven hose-reel.
Suitable for Gespasa Antistatic double layer hoses;
- Hose 20mm (Ø¾”) - 15m Long Max.
- Hose 25mm (Ø1 ”) - 10m Long Max.
Hose pressure: 10 bar Max
Dim.: 310x530x490 mm (Length x Width x Height)

2. Suction Kits

4. Bases

gespasa_800404259_universal base_

5. Strainers

8. Break Away Valves

9. Miscellaneous
