Codes:

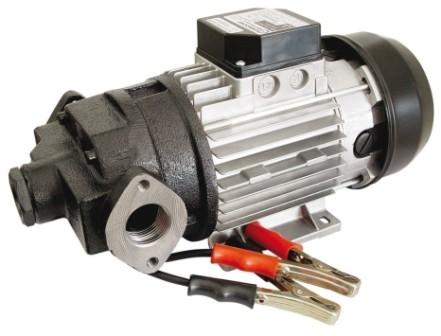

    12Vdc: 00040-CF00000

    24Vdc: 00050-CF00000

• Vane: Eccentric self-adjusting blades

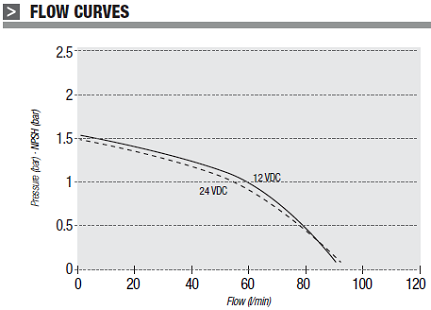

• Free Flow rate up to 90 l/min

• Delivery head up to 20m

• Self priming pipe Ø 1" or greater ;

  • Vertical up to 2.7m

  • Suction pipe length up to 5m

• F 1"G Threaded connections

• Internal recycle valve

• Anti-Rust treatment

• 370W - IP55

• Current;

  • 12Vdc Pump - 35 to 53 A

  • 24Vdc Pump - 24 to 32 A

• * S1 Continuous duty fan cooled motor

  *Battery must be charging while the pump is running

• 3m Cable with clamps

• Weight 16 kg

• ON REQUEST: On / Off SWITCH

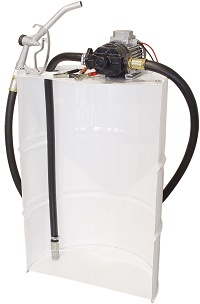

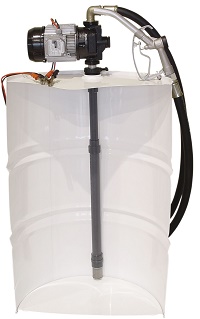

Codes:

    12Vdc: 00042-CF00000

    24Vdc: 00052-CF00000
