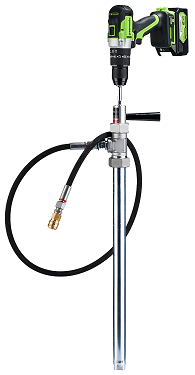

Pumping highly viscous lubricating grease or oils anywhere with ease using a cordless drill

Automotive ● Agriculture ● Forestry ● Construction ● Mining ● Marine ● Transport & logistics ● Energy supply

● Maintenance & upkeep services

• The handy pump for filling your central lubricating system or your transmission.

• Suitable for all standard grease types up to NLGI-2 & transmission oils.

• Hand pumps require a lot of force and are enormously time-consuming to operate • Much faster pumping

• Pneumatic piston pumps are often heavy & cumbersome, they must be connected to a compressed air supply

• Much quieter than air pumps.


Technical data
Pump tube drive:	Cordless drill (Not supplied)
Cordless connection:	Hex 1/4“, 6.3 mm, suitable for standard bit attachments
Delivery rates:	up to 2 000 g/min.
Pressure:	up to 35 bar Max.
Grease grades:	up to NLGI 2
Oil viscosity grade	up to ISO VG 1500
Pump tube material:	Galvanised steel/aluminium
Stator material:	NBR
Weight:	2 kg (without hose)
Pump tube connection:	Cutting ring fitting L-12 (M18 x 1.5) DIN 2353/ISO 8434-1
Pump tube diameter:	Ø 35 mm
Hose set:	1.5 m/DN10/one-hand coupling

Shank Length	Part Numbers
600 mm for 18-30 kg drums:	0207-601 (0155-205 Without Hose)
900 mm for 50-60 kg drums:	0207-602 (0155-210 Without Hose)
Drum covers & follower plates on request only

Excludes cordless drill

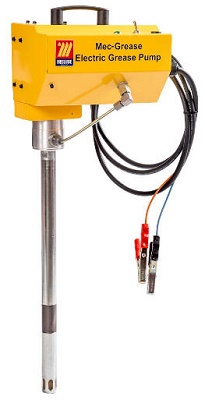

MEC-GREASE DC

No Compressed air is required, pumping grease or highly viscous lubricating oil over short or long distances using the vehicles battery.


Technical data	12Vdc	24Vdc
Current:	12 A	15 A
Duty cycle:	30 minutes	30 minutes
Delivery rate:	up to 205 g/min.
Pressure:	up to 360 bar Max.
Grease grades:	up to NLGI 2
Oil viscosity grade	up to ISO VG 1500
Seals:	Polyurethane
Outlet connection:	F ¼" G (BSP)
Pump Shank diameter:	Ø 30 mm

Shank Length	Part Numbers 12V	Part Numbers 24V
480 mm for 18-30 kg drums:	010-2020-012	010-2020-024
750 mm for 50-60 kg drums:	010-2050-012	010-2050-024
950 mm for 180-220 kg drums:	010-2200-012	010-2200-024
Drum covers & follower plates on request only

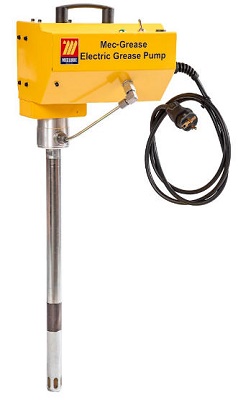

Grease Pumps - Electric 230V

No Compressed air is required, pumping grease or highly viscous lubricating oil over short or long distances using grid mains to drive the pump


Technical data	230Vac
Current:	12 A
Duty cycle:	30 minutes
Delivery rate:	up to 275 g/min.
Pressure:	up to 320 bar Max.
Grease grades:	up to NLGI 2
Oil viscosity grade	up to ISO VG 1500
Seals:	Polyurethane
Outlet connection:	F ¼" G (BSP)
Pump Shank diameter:	Ø 30 mm

Shank Length	Part Numbers
480 mm for 18-30 kg drums:	010-2020-230
750 mm for 50-60 kg drums:	010-2050-230
950 mm for 180-220 kg drums:	010-2200-230
Drum covers & follower plates on request only
