Lutz LubeDrive^®

Pumping highly viscous lubricating grease or oils anywhere with ease using a cordless drill

Eccentric Screw Technology

Cordless lubrication pump!

Does this sound odd?

Well, it isn’t! The new LubeDrive pump tube from Lutz Pumpen allows you to do exactly that.

It is the world’s first eccentric screw pump tube that can be powered by a standard cordless screwdriver.

It offers a simple, quick & flexible solution for filling central lubricating systems or transmissions, without the need for compress air or electricity.

Automotive ● Agriculture ● Forestry ● Construction ● Mining ● Marine ● Transport & logistics ● Energy supply ● Maintenance & upkeep services

• The handy pump for filling your central lubricating system or your transmission.

• Suitable for all standard grease types up to NLGI-2 & transmission oils.

• Hand pumps require a lot of force and are enormously time-consuming to operate • Much faster pumping

• Pneumatic piston pumps are often heavy & cumbersome, they must be connected to a compressed air supply • Much quieter than air pumps.


Technical data
Pump tube drive:	Cordless drill (Not supplied)
Cordless connection:	Hex 1/4“, 6.3 mm, suitable for standard bit attachments
Delivery rates:	up to 2 kg/min.
Pressure:	up to 35 bar Max.
Grease grades:	up to NLGI 2
Oil viscosity grade	up to ISO VG 1500
Pump tube material:	Galvanised steel/aluminium
Stator material:	NBR
Weight:	2 kg (without hose)
Pump tube connection:	Cutting ring fitting L-12 (M18 x 1.5) DIN 2353/ISO 8434-1
Pump tube diameter:	Ø 35 mm
Hose set:	1.5 m/DN10/one-hand coupling


Tube Length	Part Numbers

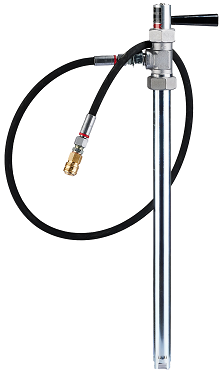

600 mm for 18-30 kg drums:	0207-601 (0155-205 Without Hose)

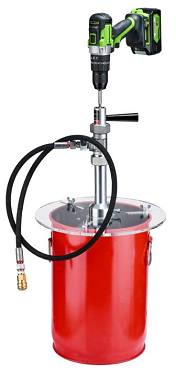

900 mm for 50-60 kg drums:	0207-602 (0155-210 Without Hose)

Excludes cordless drill

Drum covers & follower plates on request only
