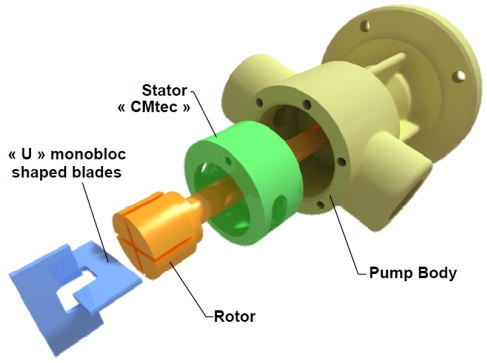

CMtec - Curved stator, Monoblock blade Technology. Combines the advantages of a Gear pump and a Vane pump; Exceptional reliability. Ability to handle highly viscous products and fluids with particles. High volumetric efficiency Positive-displacement pumping whatever the rotation speed and viscosity. High aspiration capacity to facilitate self priming. Integrated safety by-pass valve protecting the circuit. Can be tailor made due to the technically simplicity. Easy and rapid maintenance. Soft transferring: no shearing effect. Low noise levels.
Application examples Lubrication of machine tools. Diesel feeder on railway engines. Transfer of products in oil-related industries. Lubrication of public works equipment. Emptying of industrial fryers. Cleaning of oil in closed circuits. Hydraulic transfer for lubricating units
|
|
|
| Model | Capacity ml/rev | Flow l/min | Max. RPM | ByPass Pressure | Max Pressure | Viscosity Range cSt | Temp Range oC | Max Hard Solids | Ports | | | P01 | 0.001 | 2.7 @ 2P | 3000 | 5 bar | 10 bar | 1-10 000 | -20 to +150 | 200 µm | ⅜” Gf |  | | P06 | 0.006 | 16.3 @ 2P | 3000 | 5 bar | 10 bar | 1-10 000 | -20 to +150 | 200 µm | ½” Gf |  |  | | P01 & P06 Bare Shaft | MP01 & MP06 with Motor |
|
|
| Model | Capacity ml/rev | Flow l/min | Max. RPM | ByPass Pressure | Max Pressure | Viscosity Range cSt | Temp Range oC | Max Hard Solids | Ports | | | P25 | 0.025 | 35.2 @ 4P | 1500 | 5 bar | 10 bar | 1-10 000 | -20 to +150 | 200µm | 1” Gf | |  |  | | P25 Bare Shaft | MP25 with Motor |
|
|
| Model | Capacity ml/rev | Flow l/min | Max. RPM | ByPass Pressure | Max Pressure | Viscosity Range cSt | Temp Range oC | Max Hard Solids | Ports | | | P67 | 0.067 | 93.8 @ 4P | 1500 | 5 bar | 10 bar | 1-10 000 | -20 to +150 | 200 µm | 1¼” Gf | |  |  | | P67 Bare Shaft | MP67 with Motor |
|
| All values are generalised, correct selection of pump parameters are specified by our technical department *** |
 |
