You have landed on the Lutz Magnetic Drive Pumps page

Lutz Pumpen Logo

Product  Range

Manufactured in Germany

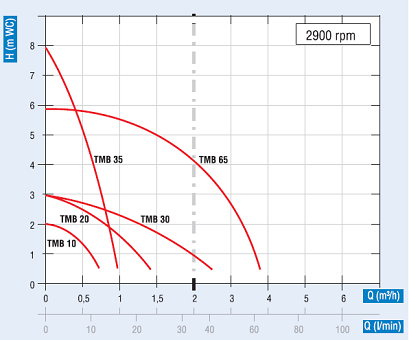

TMB Horizontal Magnetic Drive Centrifugal Pumps
  • Compact performance.

  • Pumping capacity up to 62 l/min

  • Heads up to 8m.

  • Viscosity up to 20 cPs

  • Specific gravity up to 1.1 kg/dm

  • Motors in 230V 1~phase

  • Construction:

    • PP for fluids 0 to +60C

    • ECTFE for fluids 0 to +100C

  • Rulon bearing with Ceramic shaft

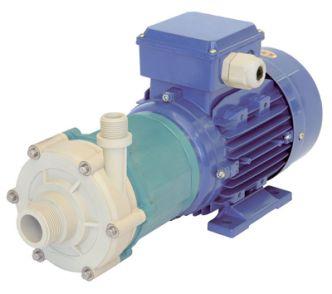

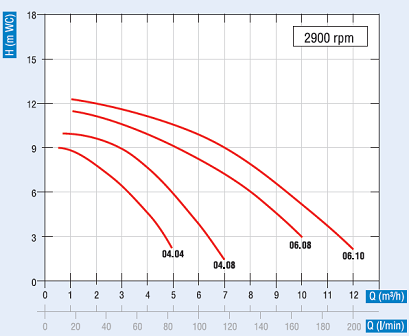

AM Horizontal Magnetic Drive Centrifugal Pumps
  • Medium performance.

  • Pumping capacity up to 200 l/min

  • Heads up to 12m.

  • Viscosity up to 40 cPs

  • Specific gravity up to 1.8 kg/dm

  • Constructions:

    • PP for fluids  -5 to +80C

    • ECTFE for fluids -20 to +100C

  • Motors in 230V 1~phase or 400V 3~phase (ATEX on request)

  • R Version HD-Carbon bearing with Ceramic shaft suited to limited dry running



Also in the range with higher specifications;

  • TMR G2 Series

  • TMR G3 Series
