Chemical Volume Meters

Selection Criteria	Drum Pump	Drum Pump	Drum Pump / Plant Install	Drum Pump / Plant Install
Measure Principle	Axial Turbine	Nutating Disc	Nutating Disc	Oval Gear
Application	Without Preselection	Without Preselection	Preselection Option	Preselection Option
Range	Up to 120 l/min	Up to 120 l/min	Up to 120 l/min	Up to 350 l/min
Liquid	Aqueous	Thin Bodied	Thin Bodied	High Viscosity
Power Supply	Battery	Battery	Mains	Mains
	\|	\|	\|	\|
	TR Series	TSB Series	TS Series	HDO Series

TR3 series

Axial flow turbine meter for the affordable accurate measurement of neutral, aggressive and corrosive liquids.

PVDF

Measurement Range: 5 to 120 l/min
Operating Pressure: 10 bar (at 20⁰C)
Viscosity Range: 0.8 to 40 cPs
Display can be rotated to suit the installation.
Back light display.
Batteries: 2x standard AAA
Temperature Range: -10 to +50⁰C
Accuracy: ± 1% and better with correct installation
Connections: G 1" or with drum pump connectors
Construction Materials:
PP Model:
PP/HC/PTFE - Neutral and Aggressive liquids like Glycol, Ferric Chloride, Hydrochloric & Phosphoric Acid
PVDF Model:
PVDF/HC/PTFE - Highly aggressive fluids Chlorine solutions, Nitric & Sulphuric Acid.

Back to Top

TSB Series

Basic Digital Key Pad

Nutating disc meter for the accurate measurement of neutral, aggressive and corrosive liquids.

Modular design offers:
Splitting of meter modules so that the display (BE1) module can be moved to another location.
Operating unit (BE1) can be integrated with Air Operated Diaphragm (AOD) pumps for volume measuring without physically measuring the fluid.
Measurement Range: 10 to 120 l/min
Operating Pressure: 4 bar (at 20⁰C)
Viscosity Range: 2000 cPs
Temperature Range: -10 to +60⁰C
Accuracy: ± 1% and better with correct installation
Connections:
Inlet - G 2" M or with optional 1¼" drum pump or fixed installation connectors
Outlet - G 1¼" M or with optional fixed installation connectors
Display: 19mm character height
Construction Materials:
ST & SL Models in PPO/PPS/FPM options - Neutral and Aggressive liquids.
LM & UN Models in PPS/LCD/FEP options - Highly flammable liquids like solvents and fuels.

back to top

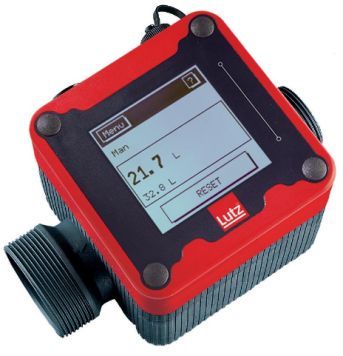

TS Series

Touch Screen Multifunction

Nutating disc meter for the accurate measurement of neutral, aggressive and corrosive liquids.

Touch screen with easy to use menus
Modular design offers:
Splitting of meter modules so that the display (BE10) module can be moved to another location.
Relay module (RM10) can be added to make the meter control pumps and valves for automatic batching.
Operating unit (BE10) and the Relay module (RM10) can be integrated with Air Operated Diaphragm (AOD) pumps for volume measuring and batching without physically measuring the fluid.
Measurement Range: 10 to 120 l/min
Operating Pressure: 4 bar (at 20⁰C)
Viscosity Range: 2000 cPs
Temperature Range: -10 to +60⁰C
Accuracy: ± 1% and better with correct installation
Connections:
Inlet - G 2" M or with optional 1¼" drum pump or fixed installation connectors
Outlet - G 1¼" M or with optional fixed installation connectors
Display: 19mm character height
Construction Materials:
ST10 & SL10 Models in PPO/PPS/FPM options - Neutral and Aggressive liquids.
LM10 & UN10 Models in PPS/LCD/FEP options - Highly flammable liquids like solvents and fuels.

Back to Top

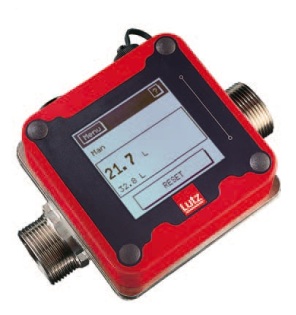

TS - VA I0 series

Nutating disc meter for the accurate measurement of neutral, highly flammable, aggressive and corrosive liquids.

Touch screen with easy to use menus
Modular design.
Measurement Range: 10 to 100 l/min
Operating Pressure: 10 bar (at 20⁰C)
Viscosity Range: 4000 cPs or higher under special conditions
Temperature Range: +60⁰C
Accuracy: ± 1% and better with correct installation
Connections:
- Inlet - G 1¼" M or with optional 1¼" drum pump or fixed installation connectors
- Outlet - G 1¼" M or with optional fixed installation connectors
Display: 19mm character height
Construction Materials:
- SS(1.4581/1.4571)/ETFE/FEP
- Hastelloy C(2.4610)/ETFE/FEP
Also Available on Request;
- PURE SS version with Tri-Clamp connections
- Explosion proof versions for applications in Ex-areas (zone 1 and 2).

Back to Top

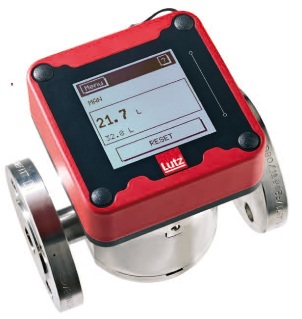

HDO series

Oval gear meter for the accurate measurement of neutral, aggressive, flammable and viscous liquids.

Touch screen with easy to use menus
Modular design offers:
Splitting of meter modules so that the display (BE10) module can be moved to another location.
Relay module (RM10) can be added to make the meter operate and control pumps and valves for automatic batching.
Measurement Range:
HDO 120 - 2 to 30 l/min - Thread ½" G
HDO 200 - 5 to 60 l/min - Thread ¾" G
HDO 250 - 6 to 150 l/min - Thread 1" G or DN25 PN16 Flanged
HDO 400 - 10 to 245 l/min - Thread 1½" G or DN40 PN16 Flanged
HDO 500 - 15 to 380 l/min - DN50 PN16 Flanged
Operating Pressure: 16 bar (at 20⁰C)
Viscosity Range: Up to 500 000 cPs
Temperature Range: 80⁰C and up to 120⁰C on SS/SS models
Accuracy: ± ½ % and better with correct installation
Display: 19mm character height
Construction Materials:
ALU/PPS/FPM
SS/PPS/FPM
SS/SS/FPM
