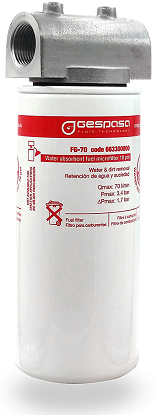

FG-70 Micro & Water Absorbent Filter for Fuels

Filter Unit Code:  663300000

• Installation: Discharge Side of Pumps

• Dirt filtration - 10 micron removal of dirt, dust & rust

• Water Removal by Absorption

• Constructed  Aluminium Head with spin-on cartridge

• Flow rates up to 94 l/min

• Pressure up to 3.4 bar

• F1" BSP connections

• Suited to;

  • Petrol & Diesel

  • Biodiesel blends up to B20

  • ULSD (Ultra Low Sulphur Diesel)

SPARE REPLACEMENT CARTRIDGE

Code: 663303000

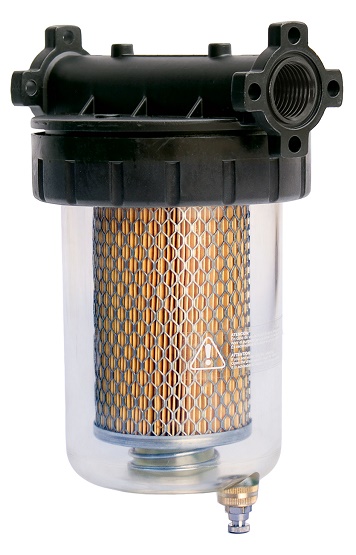

FG-100 Micro & Water Repellent Filter

Filter Unit Codes:

FG-100:   39023-CF00000   (Seals in NBR)

• Suited to Diesel

FG-100G: 39071-CF00000  (Seals in FPM)

• Suited to; Petrol, Paraffin, AVGAS, JET A-1

• Installation: Suction or Discharge Side of Pumps

• Dirt filtration - 5 micron removal

• Water Removal - 93% effective

• 2 Litre chamber

• Constructed  Aluminium Head, Acrylic Vessel

• Flow rates up to 105 l/min

• Pressure up to 3 bar

• Filters 500 000 litres under under normal conditions

• Manual Water and Dirt drain valve

• 1" BSP Thread or Flanged Connection

• On Request FG-100BIO

  Biodiesel - Dirt Removal Only - 25micron

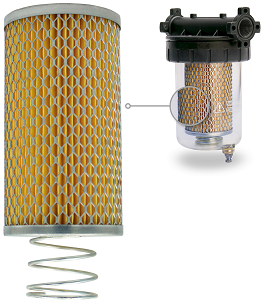

SPARE REPLACEMENT CARTRIDGE

Element Code: 66078001
