You have landed on the Gespasa Pumps for Fuels page

Product  Range


Manufactured in Spain

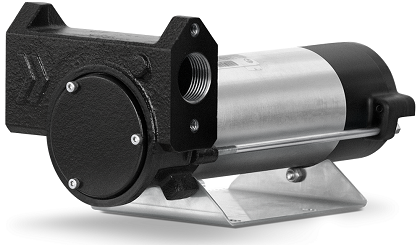

IRON-45 EX ATEX

General Purpose Robust Fuel Transfer

Codes:

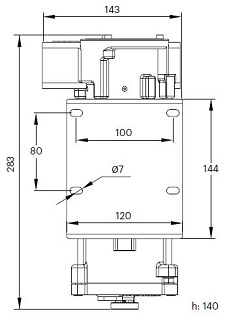

    12Vdc: 10210-CF00000gespasa_iron-45_atex_ex_10210_10220_10230_pump

    24Vdc: 10220-CF00000

  230Vac: 10230-CF00000

  • Vane: Eccentric self-adjusting blades

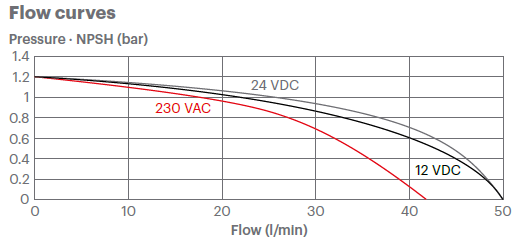

  • Free Flow Rate:

    •  12Vdc up to 49 l/min

    •  24Vdc up to 47 l/min

    • 230Vac up to 42 l/min

  • Delivery head up to 20m

  • Self priming up to 2.7m

  • Internal recycle valve

  • Motor: 120W - IP55

  • Current;gespasa_iron-45_atex_ex_pump_2

    •  12Vdc Pump - 15 to 25 A

    •  24Vdc Pump -   7 to 12 A

    • 230Vac Pump - 0.4 to 1 A

  • Duty Cycle: S2 30 minutes

  • With thermal motor protection

  • On/off Switch

  • Classified: ATEX II 2G Ex db IIA T4 Gb

  • F 1" G Threaded connection

  • Internal 350 micron strainer

  • Anti-rust treatment

  • 2m Cable with ATEX gland

  • Weight 8 kg

  • Suitable for: Petrol, Diesel, AVGAS 100 / 100LL,  JET A / A1  and Paraffin

  • OPTIONAL: Can be supplied as a drum kit.

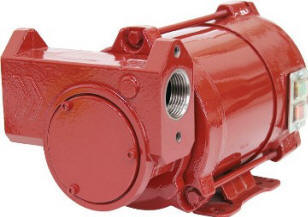

IRON-50 EX DC ATEX

General Purpose Robust Fuel Transfer



Codes

   12Vdc: 10063GESPASA IRON-50 EX 12Vdc 10063 or 24Vdc 10153

   24Vdc: 10153

  • Vane: Eccentric self-adjusting blades

  • Free Flow rate up to 50 l/min

  • Delivery head up to 20m

  • Self priming up to 2.7m

  • Internal recycle valve

  • Motor: 180W - IP55

  • Duty Cycle: S2 30 minutes

  • With thermal motor protection

  • No internal electronics that can fail

  • Classified: ATEX II 2G

    • Motor:  Ex db IIA T4 Gb

    • Pump:  Ex   h IIB T4 Gb

  • F 1" G Threaded connection

  • Internal 350 micron strainer

  • Anti-rust treatment

  • 2m Cable

  • Weight 12 kg

  • Suitable for: Petrol and Diesel, AVGAS 100 / 100LL,  JET A / A1  and Paraffin

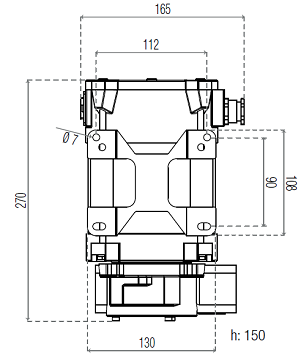

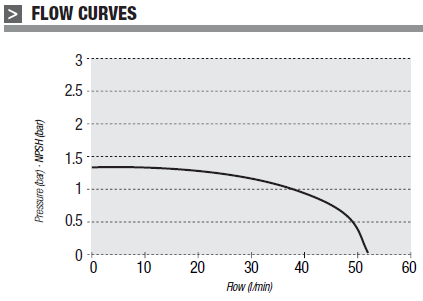

GESPASA IRON-50 EX 12Vdc or 24Vdc CURVESGESPASA IRON-50 EX 12Vdc or 24Vdc DIMS


IRON-50 EX 230V AC ATEX

General Purpose Robust Fuel Transfer



Code: 1003510035 GESPASA IRON-50 EX 230Vac

  • Vane: Eccentric self-adjusting blades

  • Free Flow rate up to 50 l/min

  • Delivery head up to 20m

  • Self priming up to 2.7m

  • Internal recycle valve

  • Motor 0.18kW - 230Vac - IP55

  • Brushless motor

  • Duty Cycle: S2 30 minutes

  • With thermal motor protection

  • No internal electronics that can fail

  • Classified: ATEX II 2G

    • Motor:  Ex db IIA T4 Gb

    • Pump:  Ex   h IIB T4 Gb

  • F 1" G Threaded connection

  • Internal 350 micron strainer

  • Anti-rust treatment

  • 2m Cable

  • Weight 12 kg

  • Suitable for: Petrol and Diesel, AVGAS 100 / 100LL,  JET A / A1  and Paraffin

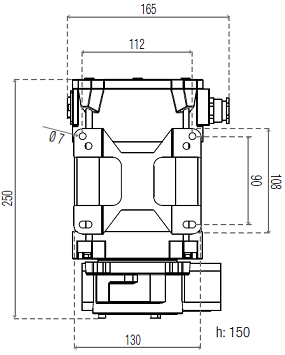

GESPASA IRON-50 EX 230Vac CURVEGESPASA IRON-50 EX 230Vac DIMS.


AG-900 12V DC ATEX

Heavy Duty Robust Fuel Transfer



Code: 10070 10070 GESPASA AG-900 12V DC EEx Heavy Duty Fuel Transfer

  • Vane: Eccentric self-adjusting blades

  • Free Flow rate up to 80 l/min

  • Delivery head up to 20m

  • Self priming up to 5m

  • Internal recycle valve

  • Motor 370W - 12Vdc  - IP55

  • Duty Cycle: S2 20 minutes

  • With thermal motor protection

  • No internal electronics that can fail

  • Classified: ATEX II 2G

    • Motor:  Ex db IIA T4 Gb

    • Pump:  Ex   h IIB T4 Gb

  • F 1" G Threaded connection

  • Anti-rust treatment

  • 2m Cable

  • Weight 19 kg

  • Suitable for: Petrol and Diesel, AVGAS 100 / 100LL,  JET A / A1 and Paraffin

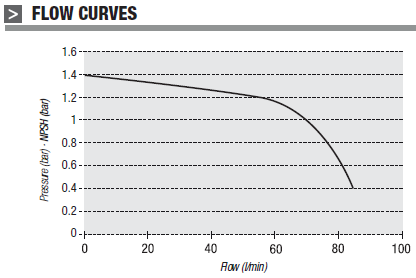

ESPASA AG-900 12V DC EEx Heavy Duty Fuel Transfer CURVE

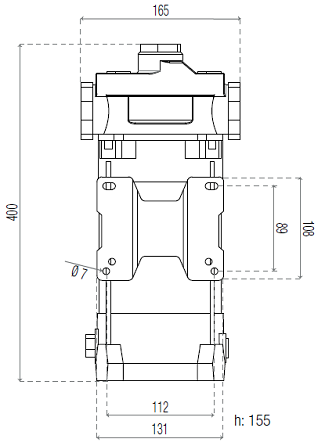

ESPASA AG-900 12V DC EEx Heavy Duty Fuel Transfer DIMS

AG-800 230V AC ATEX

Heavy Duty Robust Fuel Transfer



Code: 10040 10040 GESPASA AG-800 230V AC EEx Heavy Duty Fuel Transfer

  • Vane: Eccentric self-adjusting blades

  • Free Flow rate up to 80 l/min

  • Delivery head up to 20m

  • Self priming up to 5m

  • Internal recycle valve

  • Motor 0.37kW - 230Vac  - IP55

  • Duty Cycle: S2 30 minutes

  • With thermal motor protection

  • No internal electronics that can fail

  • Classified: ATEX II 2G

    • Motor:  Ex db IIA T4 Gb

    • Pump:  Ex   h IIB T4 Gb

  • F 1" G Threaded connection

  • Anti-rust treatment

  • 2m Cable

  • Weight 18 kg

  • Suitable for: Petrol and Diesel, AVGAS 100 / 100LL,  JET A / A1  and Paraffin

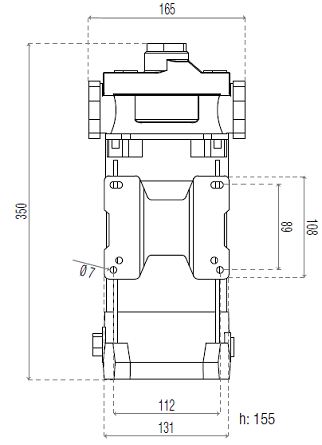

GESPASA AG-800 230V AC EEx Heavy Duty Fuel Transfer DIMS

GESPASA AG-800 230V AC EEx Heavy Duty Fuel Transfer DIMS

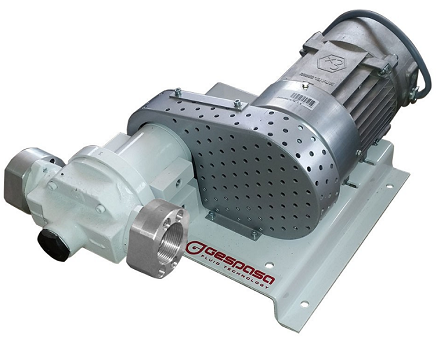

BAG-800 AC ATEX

Heavy Duty Robust Fuel Transfer



Codes

230V Single Phase: 2758027580 GESPASA BAG-800 AC EEx Heavy Duty Fuel Transfer 27520

400V  Three Phase: 27520

  • Vane: Eccentric self-adjusting blades

  • Free Flow rate up to 150 l/min

  • Delivery head up to 30m

  • Self priming up to 5m

  • Eccentric self-adjusting vane pump

  • Internal recycle valve

  • F 1½" G Threaded flange connection

  • Anti-rust treatment

  • Belt driven

  • Motor Options;

    Single Phase 230V - 1.0 kW - 6.3A

    Three Phase 400V - 1.0 kW - 5.8A

    Duty Cycle: S1 Continuous

    Certified: TÜV IT 11 ATEX012X

    Classified: II 2G EEx d IIB T3

    Thermal protection circuit

  • Weight 34 kg

  • Suitable for: Petrol and Diesel, AVGAS 100 / 100LL,  JET A / A1  and Paraffin

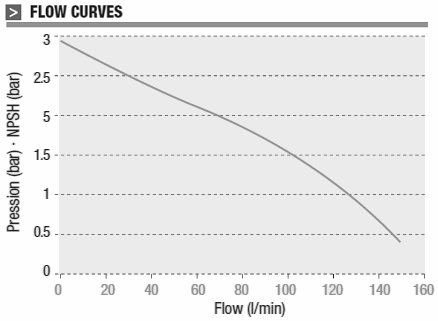

            GESPASA BAG-800 AC EEx Heavy Duty Fuel Transfer CURVES


COMPACT

Petrol Dispensers



Codes:

COMPACT-50M     12V EX - 50 l/min: 28140-CF00001

COMPACT-50M   230V EX - 50 l/min: 28140-CF00000

COMPACT-800M 230V EX - 80 l/min: 28150-CF00000

  • Vane: Eccentric self-adjusting blades

  • Self priming up to 5m

  • Internal recycle valve

  • Internal 350 micron strainer

  • MG-80 meter - Accuracy ± 1.0%

  • PA automatic nozzle

  • 4m Antistatic delivery hose

  • Epoxy coat cabinet

  • Installation;

    • COMPACT units can be supplied with a stand on request
