MG-80A

Mechanical Meter - 3 Digit

Codes:

    MG-80A    (NBR) for Diesel: 32300-CF00000

    MG-80AV  (FPM) for  Fuels:  32340-CF00000

• Flow rates from 10 to 90 l/min

• Operating pressures up to 5 bar

• Actuation: Nutating disc

• Display Analogue:

  • Partial 3 digits (999 litres) Resettable,

  • Cumulative History 6 digits Permanent

• Aluminium body

• Flameproof chamber:

  • Category: ATEX IIG

  • Protection Mode: Ex h IIB T5 Gb

• Viscosities up to 2000 cSt

• ± 1% Accuracy or better with proper installation.

• Liquid temperatures from -10 to 60 °C

• 1" Gm connections with 8 different flow directions or flange connects directly to IRON and AG pumps

• 352 micron inlet filter

• Suited to diesel, petrol, paraffin and thin oils

MG-84A

Mechanical Meter - 4 Digit

Codes:

    MG-84A    (NBR) for Diesel: 32360-CF00000

    MG-84AV  (FPM) for  Fuels:  32370-CF00000


• Flow rates from 15 to 90 l/min

• Operating pressures up to 5 bar

• Actuation: Nutating disc

• Display Analogue:

  • Partial 4 digits (9 999 litres) Resettable,

  • Cumulative History 8 digits Permanent

• Aluminium body

• Flameproof chamber:

  • Category: ATEX IIG

  • Protection Mode: Ex h IIB T5 Gb

• Viscosities up to 2000 cSt

• ± 1% Accuracy or better with proper installation.

• Liquid temperatures from -10 to 60 °C

• 1" Gm connections with 8 different flow directions or flange connects directly to IRON and AG pumps

• 352 micron inlet filter

• Suited to diesel, petrol, paraffin and thin oils

MGE-110

Electronic Meter

Code: 32600-CF00000

• Flow rates;

  • Diesel from 5 to 110 l/min

  • Oils from 5 to 80 l/min

• Operating pressures up to 50 bar

• Actuation: Oval gears

• Display Digital:

  • Partial 5 digits (99 999 litres) Resettable,

  • Cumulative History 5 digits Permanent

• Aluminium body, with Ryton gears

• Viscosities up to 2000 cSt

• ± 0.5% Accuracy or better with proper installation.

• Liquid temperatures from -10 to 60 °C

• 1" Gm connections with 4 different flow directions

• Flanged to connect directly to IRON and AG pumps

• Suited to diesel and oils

• Also available on request in PVC, MGE-110 Blue

Codes:

   MGE-250: 32503-CF00001

Diesel flow rates from 10 to 250 l/min

Oils flow rates from 10 to 150 l/min

Ports 1½" Gm threaded flanges

    MGE-400: 32592-CF00000

Diesel flow rates from 15 to 400 l/min

Oils flow rates from 15 to 300 l/min

Ports 2" Gm threaded flanges

• Operating pressures up to 40 bar

• Actuation: Oval gears

• Display Digital:

  • Partial 5 digits (99 999 litres) Resettable,

  • Cumulative History 5 digits Permanent

• Aluminium body

• Viscosities up to 2000 cSt

• ± 0.5% Accuracy or better with proper installation.

• Liquid temperatures from -10 to 50 °C

• Suited to diesel and oils

Code: 32350-CF00000

• Flow rates

  • Diesel from 2 to 50 l/min

  • Lubricants from 2 to 40 l/min

• Operating pressures up to 50 bar

• Actuation: Oval gears

• Display Digital:

  • Partial 5 digits (99 999 litres) Resettable,

  • Cumulative History 5 digits Permanent

• Aluminium body, protective cover

• Viscosities up to a SAE140 equivalent

• ± 0.5% Accuracy or better with proper installation.

• Liquid temperatures from -10 to 60 °C

• ½" Gm connections

• Suited to diesel and oils

Code: 47410-CF00002

• Can also be supplied c/w with an integrated control nozzle

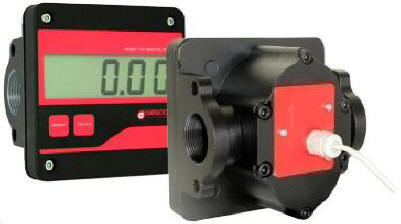

MGE/I-110 Pulse Meter With Display

Code: 32602-CF00000

• Display Digital:

  • Partial 5 digits (99 999 litres) Resettable,

  • Cumulative History 5 digits Permanent

• Flow rates:

  • Diesel from 5 to 110 l/min

  • Oils from 5 to 80 l/min

• Operating pressures up to 53 bar

• Actuation: Oval gears.

• Aluminium body.

• Viscosities: 2 - 2000 cSt

• ± 0.5% Accuracy or better with proper installation.

• Pulses: 2 channels - 41 pulses per channel · total of 82 pulses per litre

• Liquid temperatures from -10 to 60 °C

• 1" Gm Thread & Flanged connections

• Suited to diesel and oils

Code: 322800100

• Pulses: 2 Potential free channels at 180° out of phase

• 100 pulses per channel · giving a total of 200 pulses per litre.

• Maximum switching voltage 28 Vac/Vdc

• Maximum switching current 100mA

• Flow rates from 2 to 40 l/min

• Operating pressures up to 50 bar

• Aluminium body, with oval gears.

• Viscosities up to a SAE140 equivalent

• ± 0.5% Accuracy or better with proper installation.

• Liquid temperatures from -10 to 90 °C

• ½" Gm connections

• Suited to diesel and oils

Code: 32650-CF00000 - 180° Reed

• Pulses: 2 channels - 41 pulses per channel · total of 82 pulses per litre.

• Flow rates:

  • Diesel from 5 to 110 l/min

  • Oils from 5 to 80 l/min

• Operating pressures up to 53 bar

• Actuation: Oval gears

• Aluminium body.

• Viscosities: 2 - 2000 cSt

• ± 0.5% Accuracy or better with proper installation.

• Liquid temperatures from -10 to 60 °C

• 1" Gm Thread & Flanged connections

• Suited to diesel and oils

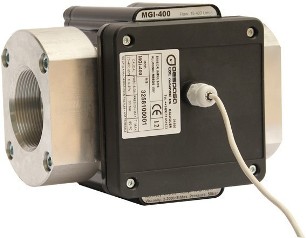

Codes:

  MGI-250: 32511-CF00001

Pulses: 2 channels - 11 pulses per channel · total of 22 pulses per litre

Diesel flow rates from 10 to 250 l/min

Oils flow rates from 10 to 150 l/min

Ports 1½" Gm threaded flanges

   MGI-400: 32581-CF00000

Pulses: 2 channels - 5.5 pulses per channel · total of 11 pulses per litre

Diesel flow rates from 15 to 400 l/min

Oils flow rates from 15 to 300 l/min

Ports 2" Gm threaded flanges

• Operating pressures up to 45 bar

• Actuation: Oval gears

• Aluminium body.

• Viscosities up to 2000 cSt

• ± 0.5% Accuracy or better with proper installation.

• Liquid temperatures from -10 to 50 °C

• Suited to diesel and oils
