Product  Range

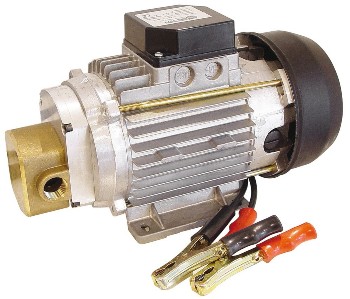

EA-90 DC Heavy Duty Oil Transfer

Codes:

   12Vdc: 03014

   24Vdc: 03090

• Type: Gear

• Free Flow rate up to 25 l/min

• Delivery pressure up to 5 bar

• Self priming up to 2.5m

• Connections ½" F BSP

• Internal recycle valve

• Pumps clean oil up to medium viscosity 200cSt

• Motor power 400W - IP55

• * S1 Continuous duty fan cooled motor

• Current;

  • 12Vdc Pump - 35 to 55 A

  • 24Vdc Pump - 20 to 32 A

• 3m Cable with clamps

• OPTIONAL: Can be supplied as a drum kit.

*Battery must be charging while the pump is running

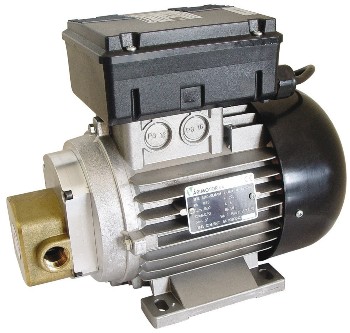

EA-88 (1hp) AC Heavy Duty Oil Transfer

Code: 03070

• Type: Gear

• Free Flow rate up to 25 l/min

• Delivery pressure up to 7 bar

• Self priming up to 2.5m

• Connections ½" F BSP

• Internal recycle valve

• Pumps clean oils

• Viscosity;

  • Continuous up to 320cSt

  • Intermittent up to SAE140 equivalent

• Motor Power 0.75kW - 230V/~1ph/50Hz - IP55

• S1 Continuous duty

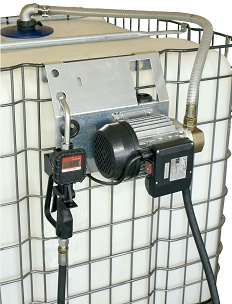

• OPTIONAL: Can be supplied as a kit.

KDE-1000 with EA-88 Pump

+ PMGE-40 Nozzle + 4m Hose + Base

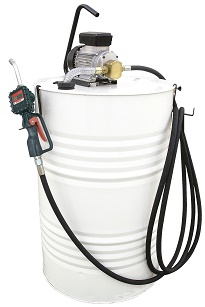

KDE-200 with EA-88 Pump

+ PMGE-40 Nozzle + 4m Hose

EA-88 Pump + PMGE-40 Nozzle
