EXPLOSION PROOF

Motor Driven

Low Viscosity Conventional

Drum & Container Pumps

Excellent solutions for handling easily flammable liquids and pumping in environments with explosive atmospheres. Developed and designed, tested and certified in compliance with ATEX100a.

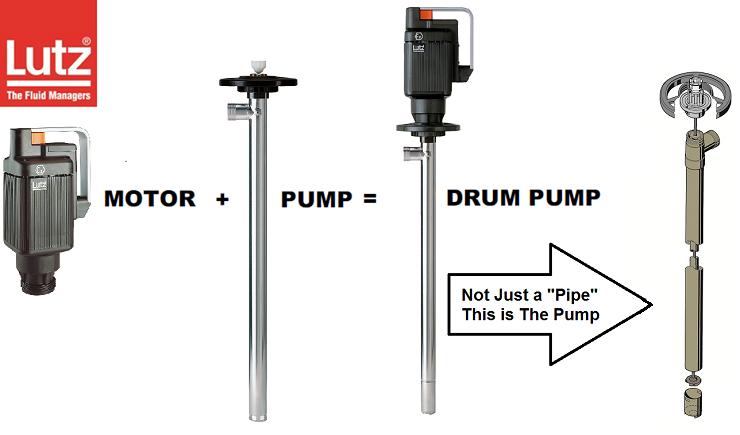

The Basics of a Drum Pump

Standard Pump Tube Lengths
Special lengths 200mm to 2500mm on request

 Tailor Made Solutions to Container Decanting.



 INDUSTRIAL DRUM PUMPS

PUMP TUBES:

Choice of 2 Different Materials of Pump Construction, each material  selected for a specific type of liquid:

  • SS - Stainless Steel (1.4571)

    Corrosive, Neutral & Highly-Flammable Fluids

    Solvents, Alcohols, fuels

    • Contact Materials: SS / SS

    • Fluid Temperature - 100°C Max

    • Tube Diameter - 41mm

    • Fluid Mover - Impeller L ( Rotor R on request only )

    • Hose Connection - 25mm

    • Seals - None SL ( Sealed MS on request only )

    • PURE Option on Request





  • HC - Hastelloy C (2.4610)

    Highly Corrosive & Highly-Flammable Fluids

    Hydrofluoric Acid, Bromine, Perchloric Acid

    • Contact Materials: HC / HC

    • Fluid Temperature - 100°C Max

    • Tube Diameter - 41mm

    • Fluid Mover - Impeller L ( Rotor R on request only )

    • Hose Connection - 25mm

    • Seals - None SL ( Sealed MS on request only )



ME II3 + HC

PUMP MOTORS:

Choice of Several Motors depending on the S.G. and viscosity of the liquids as well as the type of environment in which the pump will be used:

ME II ATEX UNIVERSAL MOTORS

Complies with the European Standards
EN/IEC 60 079-0, EN/IEC 60 079-1 and
EN/IEC 60 079-7. Built & approved in keeping with the explosion protection Atex Directive 2014/34/EU and IEC Ex
.





German Patent DE 38 15427 C2





• Robust industrial construction

• Compliance level II 2 G Ex db eb IIC T5 or T6

• Totally Enclosed TEFC - IP54

• Double wall housing

• Electrically efficient, lower power required

• Electrically double insulated

• Thermal over current release

• Low voltage release LVR

• Double-pole ON/OFF switch

• Explosion proof

• Excellent for harsh site work



Choice of 4 power ratings

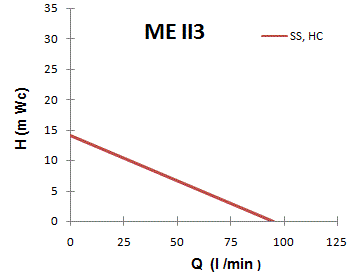

• ME II3 - 460W - 230V

- Maximum Fluid Density: 1.6 kg/dm³ Max.

- Fluid Viscosity: 350 cPs Max

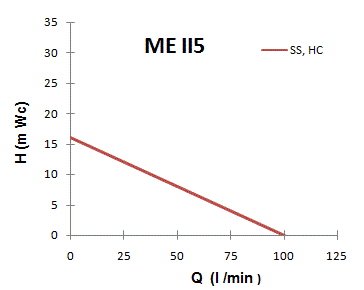

• ME II5 - 575W - 230V

- Maximum Fluid Density: 1.8 kg/dm³ Max.

- Fluid Viscosity: 700 cPs Max for SS, HC

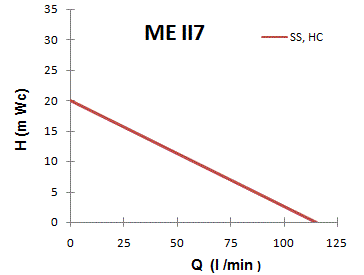

• ME II7 - 795W - 230V

- Maximum Fluid Density: 1.9 kg/dm³ Max.

- Fluid Viscosity: 500 cPs Max

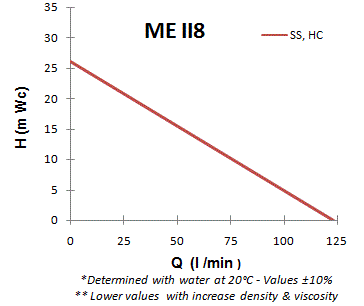

• ME II8 - 930W - 230V

- Maximum Fluid Density: 1.9 kg/dm³ Max.

- Fluid Viscosity: 750 cPs Max for SS, HC











*** Slightly different values for RE & MP pumps

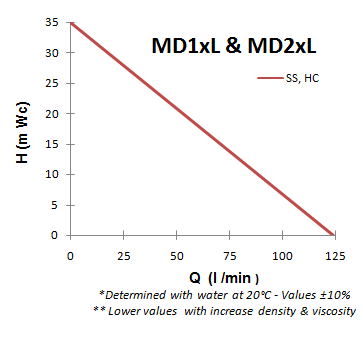

MDxL AIR POWERED MOTORS

Powerful, Simple and efficient. Explosion Proof compact design. Overload proof. Delivery flow can be easily regulated. Can run without lubrication, extended life with lubrication.



• Infinity flow regulation

• ATEX Compliances:

   II 2G Ex h IIB T6 Gb
   II 2D Ex h IIIC T80°C Db

• Optional MD1xL without handle & throttle



• MD2xL - 1000W - AIR DRIVEN

- Maximum Fluid Density: 2.8 kg/dm³ Max.

- Fluid Viscosity: 1000 cPs Max

*** Slightly different values for RE & MP pumps

Back to Top

PURE DRUM PUMPS

Pumps in contact with food products are considered to be "food contact materials" and are thus subject to strict legal regulations. The new Lutz PURE series includes products which are in conformity with ATEX Directive as well as the FDA (21 CFR 177)Approval and the European Regulation according to 1935/2004/EC.

  • Construction: Food quality Stainless Steel (1.4571)

  • Sealing Options:

    • SL - Sealless

    • MS - Carbon/Ceramic with EPDM or FPM option

  • Discharge: DN32 Tri-Clamp Flange

  • Lubrication: None

  • Performance: Same as the industrial drum pumps

  • Optional Hose Connectors: Gasket EPDM or FPM option



          Back to Top

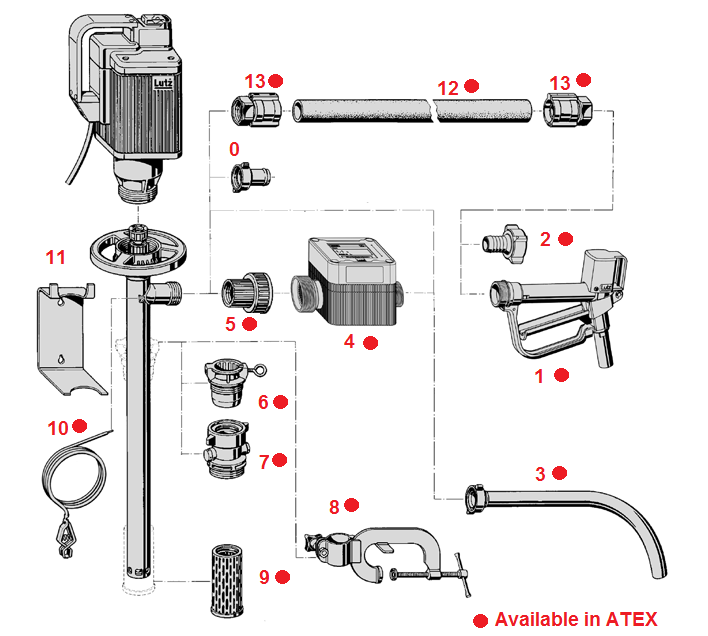

Optional Accessories

0 - Included for non-PURE

1 - Chemical nozzles

2 - Hose tail and wing nut

3 - Rigid spout

4 - Flow meters

5 - Pump/Meter connectors

6 - Normal drum adapter

7 - Emission proof drum adapter

8 - Pump clamp

9   - Foot strainer

10 - Static earthing cable

11 - Pump wall storage bracket

12 - Chemical hosing

13 - Ex Hose connections

Back to Top
