Lutz High Viscosity Drum Pumps

Lutz Pumpen | South Africa

Sole Partners Since 1969

Drum Pump Range

Product Range

Manufactured in Germany

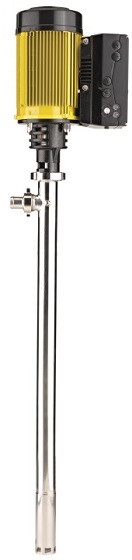

B70V Motor Driven High Viscosity Drum Pumps Viscosity Range 500 to 100 000 cPs
Professional solutions for handling of medium to highly viscose and sticky liquids out of drums, containers and other vessels.

	Eccentric Screw Technology

Smooth no Pulsation No Shearing of Sensitive Products Very few moving parts Simple Design Used to pump paint, dirty oils, cosmetics, toothpaste, honey, molasses and even cheese spread. Repair and service friendly design with a small number of components and can be stripped for cleaning by loosening one nut.

Vertical High Viscosity Drum Pump Combinations

INDUSTRIAL HIGH VISCOSITY PUMPS
B70V SR		B70V D

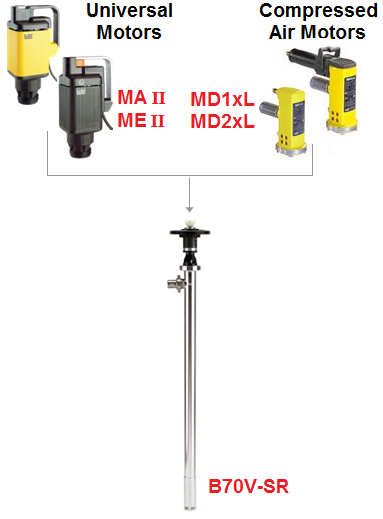

SR - Speed Reduction Flow Rate Models: 12.1 - 12 l/min 25.1 - 25 l/min 50.1 - 50 l/min Delivery Head: Up to 6 bar Viscosity: Up to 30 000 cPs Fluid Temperature: Up to 140 °C Pump Tube Diameter: 54 mm Discharge Connection: 1½" GM or 38mm Hose Tail Construction: Stainless 1.4571/1.4404 Stator Material Options: NBR ( White - 80°C Max ) FPM ( Viton® ) PTFE (ATEX only 100°C) Fluid Seal Options: Mechanical seal Pack Gland Powered by: Lutz 230V or Air Universal motors in normal or ATEX options		D - Direct Drive Flow Rate Models: 12.1 - 12 l/min 25.1 - 25 l/min 50.1 - 50 l/min 75.1 - 75 l/min Delivery Head: Up to 8 bar Viscosity: Up to 100 000 cPs Fluid Temperature: Up to 140 °C Pump Tube Diameter: 54 mm Discharge Connection: 1½" GM or 38mm Hose Tail Construction: Stainless 1.4571/1.4404 Stator Material Options: NBR ( White - 80°C Max ) FPM ( Viton® ) PTFE (ATEX only 100°C) Fluid Seal Options: Mechanical seal Pack Gland Powered by: IEC 400V or Air motors in normal or ATEX options. Other voltages on request

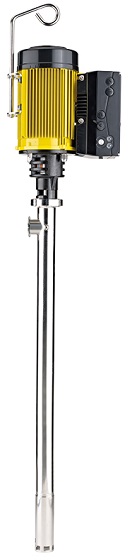

PURE HIGH VISCOSITY PUMPS Pumps in contact with food products are considered to be "food contact materials" and are thus subject to strict legal regulations. The new Lutz PURE series includes products which are in conformity with ATEX Directive as well as the FDA Approval and the European Regulation according to 1935/2004/EC.
B70V SR		B70V D
Flow Rate Models: 12.1 - 12 l/min 25.1 - 25 l/min 50.1 - 50 l/min Delivery Head: Up to 6 bar Viscosity: Up to 30 000 cPs Fluid Temperature: Up to 140 °C Pump Tube Diameter: 54 mm Discharge Connection: DN50 Tri-Clamp Flange Construction: Stainless 1.4571/1.4404 Stator Material: PTFE (ATEX only 100°C) Fluid Seal Options: Mechanical seal Powered by: Lutz 230V or Air Universal motors in normal or ATEX options		Flow Rate Models: 12.1 - 12 l/min 25.1 - 25 l/min 50.1 - 50 l/min 75.1 - 75 l/min Delivery Head: Up to 8 bar Viscosity: Up to 100 000 cPs Fluid Temperature: Up to 140 °C Pump Tube Diameter: 54 mm Discharge Connection: DN50 Tri-Clamp Flange Construction: Stainless 1.4571/1.4404 Stator Material: PTFE (ATEX only 100°C) Fluid Seal Options: Mechanical seal Powered by: IEC 400V or Air motors in normal or ATEX options. Other voltages on request

SANITARY PLUS HIGH VISCOSITY PUMPS

Pumps in contact with food products are considered to be "food contact materials" and are thus subject to strict legal regulations.

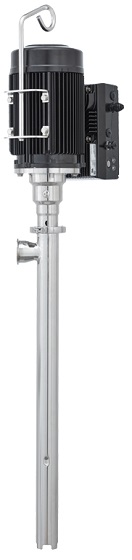

The new eccentric screw pump Lutz B70V SanitaryPlus was developed and designed for pumping liquid foodstuffs, pharmaceutical agents and cosmetic products from different vessels and containers. This new development strictly meets the constructive requirements of the hygienic design and is certified and approved according to the latest “3-A Sanitary Standards”. It's PURE and more.

No-thread-design in the hydraulic area
One-piece drive shaft for perfect hygiene
Long operating times due to contamination-proof and sterile pump design
Delivery volume proportional to speed
Temporary reversible conveying direction
Continuous and low pulsation pumping, nearly independent from pressure- and viscosity fluctuations
Stable suction- and pressure capacities
Service-friendly
Housing design, free of dead space for good flow properties
Wetted surfaces with a polished finish prevent the accumulation of liquid and facilitate the cleaning.

B70V-H SR		B70V-H D
Flow Rate Models: 12.1 - 12 l/min 25.1 - 25 l/min 50.1 - 50 l/min Delivery Head: Up to 6 bar Viscosity: Up to 30 000 cPs Fluid Temperature: Up to 100 °C Pump Tube Diameter: 54 mm Discharge Connection: DN50 Tri-Clamp Flange Construction: Stainless 1.4404 Stator Material: PTFE Fluid Seal Options: Mechanical seal Powered by: Lutz 230V or Air Universal motors in normal or ATEX options		Flow Rate Models: 12.1 - 12 l/min 25.1 - 25 l/min 50.1 - 50 l/min 75.1 - 75 l/min Delivery Head: Up to 8 bar Viscosity: Up to 100 000 cPs Fluid Temperature: Up to 100 °C Pump Tube Diameter: 54 mm Discharge Connection: DN50 Tri-Clamp Flange Construction: Stainless 1.4404 Stator Material: PTFE Fluid Seal Options: Mechanical seal Powered by: IEC 400V or Air motors in normal or ATEX options. Other voltages on request
