Complete Drum Drainage Pumps

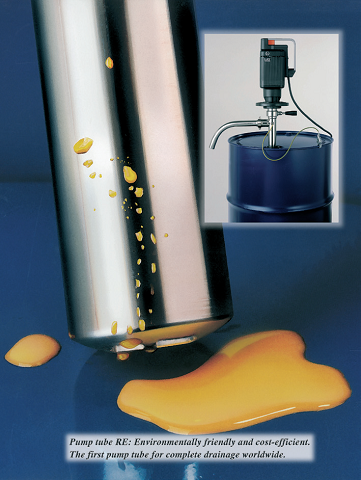

RE Lutz pump tubes in either stainless steel or polypropylene.



GERMAN PATENT: DE 37 18325 C2



They do not only protect the environment, but also help to save money.

  • Liquid is used to the maximum

  • "To the dregs" less than a 100ml remaining

  • Reduced cost of residue disposal

  • No drain back when changing drums

With the motor running, the pump foot is closed by lowering the sealing foot within the pump tube. The sealing cap locks the pump foot and prevents the entered liquid from flowing back into the drum. Closing is done in no time at all by rotating the small lever below the hand wheel.

With the motor switched off, the pump holding the liquid can be removed from the drum with all the valuable liquid trapped within the pump tube.

Cap Open - Liquid is Pumped Out

Cap Closed - Liquid is Trapped in Pump



Tailor Made Solutions to Container Decanting

Back to Top

  • PUMP CONSTRUCTION:

    Choice of 2 Different Materials of Pump Construction, each material selected for a specific type of liquid:

    • PP - Polypropylene (Yellow / Grey Plastic)

    • SS - Stainless Steel (1.4571)

    • SS PURE - Stainless Steel (1.4571)



  • Repair and service friendly design with a small number of components.



  • Pumps are available without seals or with axial face seals.



  • High performance in pumping:

    • Flow rate up to 210 l/min

    • Delivery up to 22 mWC



  • Fluid properties:

    • Density up to 1.9 kg/dm3

    • Viscosity up to 850 cPs



  • MOTOR SELECTION:

    Choice of Several Motors depending on the density and viscosity of the liquids as well as the type of environment in which the pump will be used:

    • NON FLAMMABLE LIQUIDS & AREAS

      • MI4E - Versatile entry level industrial 220V electric motor.

      • MAII  - Robust industrial 220V electric motor with a choice of 3 power ratings.

      • B4/GT - 24/7 quiet operation 400V electric Motor

    • FLAMMABLE LIQUIDS & AREAS

      • MEII  - Robust industrial Explosion Proof 220V electric motor with a choice of 4 power ratings.

      • MDxL - Air powered motor, very powerful, simple and efficient.

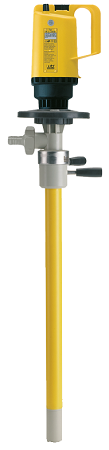

MI 4E + RE PP

Back to Top

PURE DRUM PUMPS

Pumps in contact with food products are considered to be "food contact materials" and are thus subject to strict legal regulations. The new Lutz PURE series includes products which are in conformity with ATEX Directive as well as the FDA (21 CFR 177)Approval and the European Regulation according to 1935/2004/EC.

  • Construction: Food quality Stainless Steel (1.4571)

  • Sealing Options:

    • SL - Sealless

    • MS - Carbon/Ceramic with EPDM or FPM option

  • Discharge: DN32 Tri-Clamp Flange

  • Lubrication: None

  • Performance: Same as the industrial drum pumps

  • Optional Hose Connectors: Gasket EPDM or FPM option

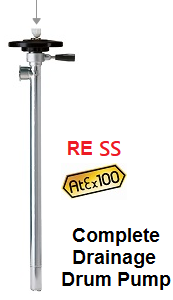

RE SS

          Back to Top

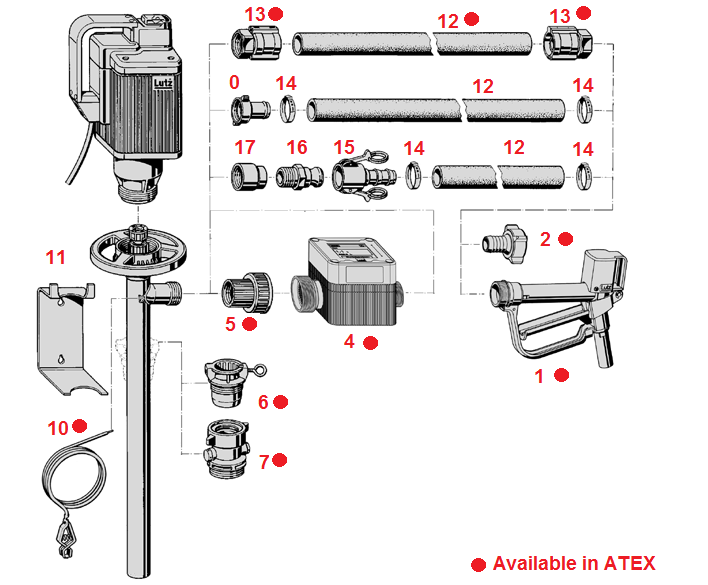

Optional Accessories

0 - Included for non-PURE

1 - Chemical nozzles

2 - Hose tail and wing nut

3 -

4 - Volume meter

5 - Pump / Meter connectors

6 - Normal drum adapter

7 - Emission proof drum adapter

8 -

9   -

10 - Static earthing cable

11 - Pump wall storage bracket

12 - Chemical hosing

13 - Ex Hose connections

14 - SS hose clamps

15 - Quick couplers (Female)

16 - Quick couplers (Male)

17 - Connection adapters
