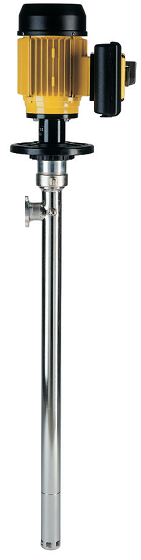

HD-E  Motor Driven

Medium Viscosity Drum Pumps

Professional solutions for handling of medium viscosity liquids out of drums, containers and other vessels.

Eccentric Screw Technology

  • Smooth no Pulsation

  • No Shearing of Sensitive Products

  • Very few moving parts

  • Simple Design

  • Used to pump paint, dirty oils, cosmetics, toothpaste, honey, molasses.

  • Repair and service friendly design with a small number of components and can be stripped for cleaning by loosening one nut.

Medium Viscosity Drum Pumps - Progressive Cavity

Back to Top



INDUSTRIAL MEDIUM VISCOSITY PUMPS

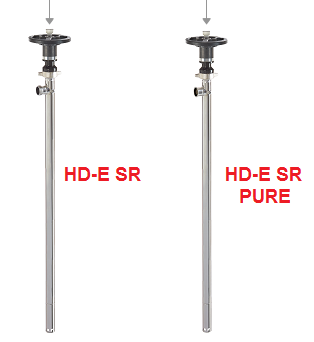

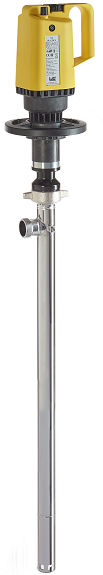

HD-E SRHD-E
  • SR - Speed Reduction

  • Flow Rate:

    Up to 17 l/min

  • Delivery Head:

    Up to 6 bar

  • Viscosity:

    500 to 30 000 cPs

  • Fluid Temperature:

    Up to 100 C

  • Pump Tube Diameter:

    41 mm

  • Discharge Connection:

    1" GM or 25mm Hose Tail

  • Construction:

    Stainless 1.4571

  • Stator Material Options:

    PTFE

  • Mechanical seal:

    Carbon/SIC/FPM

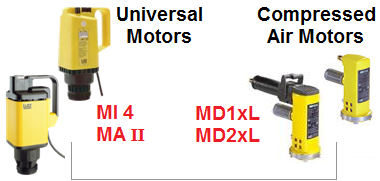

  • Powered by:

    MI4/MAII 230V Electric motors

    MDxL Air motors

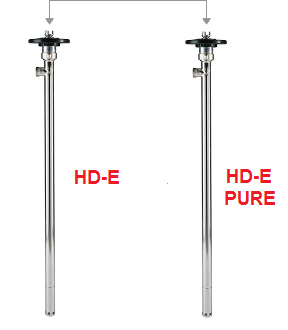

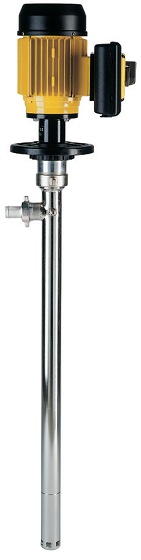

  • Direct Drive

  • Flow Rate:

    Up to 20 l/min

  • Delivery Head:

    Up to 4 bar

  • Viscosity:

    500 to 4 000 cPs

  • Fluid Temperature:

    Up to 100 C

  • Pump Tube Diameter:

    41 mm

  • Discharge Connection:

    1" GM or 25mm Hose Tail

  • Construction:

    Stainless 1.4571

  • Stator Material Options:

    PTFE

  • Mechanical seal:

    Carbon/SIC/FPM

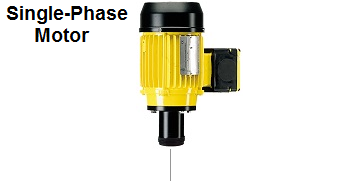

  • Powered by:

    IEC 230V Electric motor

Back to Top

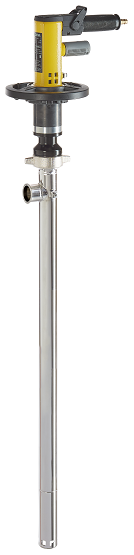

PURE MEDIUM VISCOSITY PUMPS





Pumps in contact with food products are considered to be "food contact materials" and are thus subject to strict legal regulations. The new Lutz PURE series includes products which are in conformity with ATEX Directive as well as the FDA Approval and the European Regulation according to 1935/2004/EC.

HD-E SRHD-E
  • SR - Speed Reduction

  • Flow Rate:

    Up to 17 l/min

  • Delivery Head:

    Up to 6 bar

  • Viscosity:

    500 to 30 000 cPs

  • Fluid Temperature:

    Up to 100 C

  • Pump Tube Diameter:

    41 mm

  • Discharge Connection:

    DN32 Tri-Clamp Flange

  • Construction:

    Stainless 1.4571

  • Stator Material Options:

    PTFE

  • Mechanical seal:

    SS/Carbon/FPM

    or

    SS/Carbon/EPDM

  • Powered by:

    MI4/MAII 230V Electric motors

    MDxL Air motors

  • Direct Drive

  • Flow Rate:

    Up to 20 l/min

  • Delivery Head:

    Up to 4 bar

  • Viscosity:

    500 to 4 000 cPs

  • Fluid Temperature:

    Up to 100 C

  • Pump Tube Diameter:

    41 mm

  • Discharge Connection:

    DN32 Tri-Clamp Flange

  • Construction:

    Stainless 1.4571

  • Stator Material Options:

    PTFE

  • Mechanical seal:

    SS/Carbon/FPM

    or

    SS/Carbon/EPDM

  • Powered by:

    IEC 230V Electric motor

Back to Top

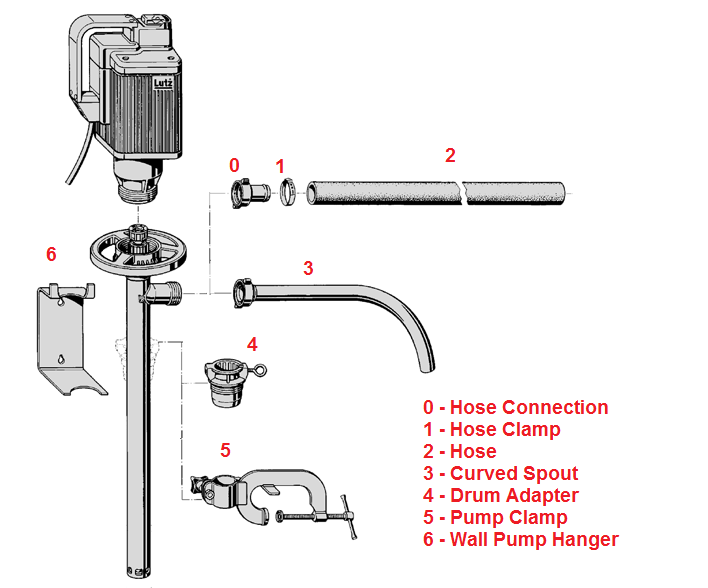

Optional Accessories

Back to Top
