You have landed on the Lutz Non-Flammable Low Viscosity Drum Pumps page

Lutz Pumpen Logo
Drum Pump Range

Product  Range

Manufactured in Germany






NON-FLAMMABLE

Motor Driven

Low Viscosity

Drum & Container Pumps

Professional solutions for handling of non flammable, neutral, aggressive and corrosive liquids in drums, containers and other vessels in non explosive areas.

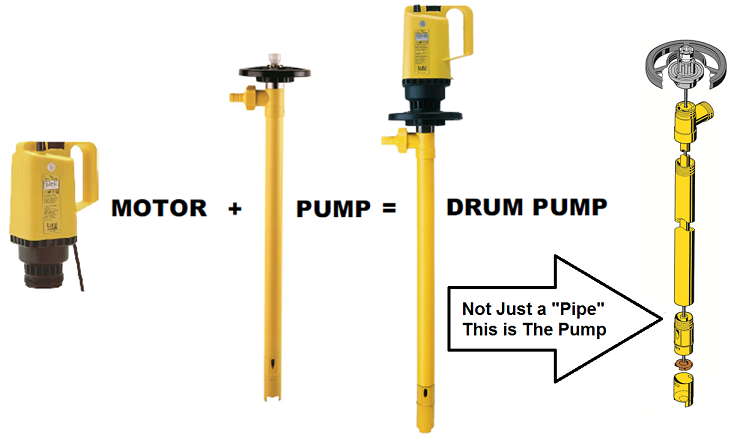

The Basics of a Drum Pump

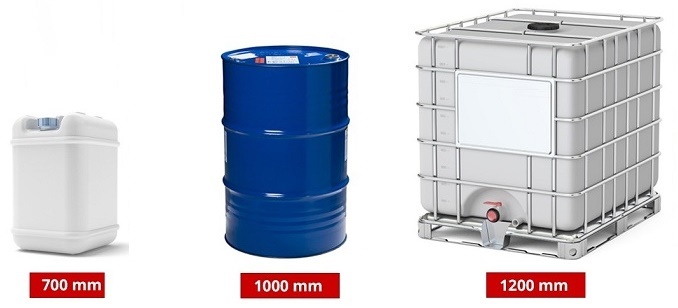

Standard Pump Tube Lengths
Special lengths 200mm to 2500mm on request
 Tailor Made Solutions to Container Decanting.
Drum Pump Combinations


PUMP TUBES:

Choice of 5 Different Materials of Pump Construction, each material selected for a specific type of liquid:

  • PP - Polypropylene (Yellow Plastic)

    Corrosive & Neutral Fluids

    Hydrochloric Acid, Sodium Chloride, Sodium Hydroxide

    • Contact Materials: PP / HC

    • Fluid Temperature - 50°C Max

    • Tube Diameter - 41mm

    • Fluid Mover - Impeller L ( Rotor R on request only )

    • Hose Connection - 25mm

    • Seals - None SL ( Sealed MS on request only )



  • PVDF - Polyvinylidene fluoride (White Plastic)

    Highly Corrosive Fluids

    Sulphuric Acid, Nitric Acid, Sodium Hypochlorite

    • Contact Materials: PVDF / HC

    • Fluid Temperature - 100°C Max

    • Tube Diameter - 41mm

    • Fluid Mover - Impeller L ( Rotor R on request only )

    • Hose Connection - 25mm

    • Seals - None SL ( Sealed MS on request only )



  • ALU - Aluminium/PVDF

    Neutral Non-Flammable Fluids

    Mineral Oils, Diesel, Potassium Nitrate

    • Contact Materials: ALU / PVDF / SS

    • Fluid Temperature - 100°C Max

    • Tube Diameter - 41mm

    • Fluid Mover - Impeller L ( Rotor R on request only )

    • Hose Connection - 25mm

    • Seals - None SL ( Sealed MS on request only )



  • SS - Stainless Steel (1.4571)

    Corrosive, Neutral & Non-Flammable Fluids

    Mineral Oils, Diesel, Potassium Nitrate

    • Contact Materials: SS / SS

    • Fluid Temperature - 100°C Max

    • Tube Diameter - 41mm

    • Fluid Mover - Impeller L ( Rotor R on request only )

    • Hose Connection - 25mm

    • Seals - None SL ( Sealed MS on request only )

    • PURE Option on Request



  • HC - Hastelloy C (2.4610)

    Highly Corrosive & Non-Flammable Fluids

    Hydrofluoric Acid, Bromine, Perchloric Acid

    • Contact Materials: HC / HC

    • Fluid Temperature - 120°C Max

    • Tube Diameter - 41mm

    • Fluid Mover - Impeller L ( Rotor R on request only )

    • Hose Connection - 25mm

    • Seals - None SL ( Sealed MS on request only )

MI 4E + PP

MA II5 + PVDF


PUMP MOTORS:

Choice of Several Motors depending on the density and viscosity of the liquids as well as the type of environment in which the pump will be used:

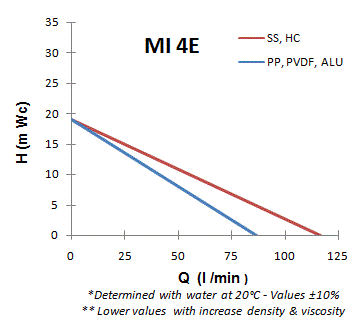

MI 4E UNIVERSAL MOTOR

Versatile entry level industrial electric motor. Excellent for warehouse, stores use where environments are free of dust and fumes



Light & Convenient

Powerful with good price/performance ratio

Double-pole ON/OFF switch

Thermal over current release

Splash water protected IP 24

Not explosion proof

Speed control, for flow control



MI 4E - 500W - 230V

- Fluid Density: 1.4 kg/dm³ Max.

- Fluid Viscosity: 500 cPs Max



*** Slightly different values for RE & MP pumps



MA II UNIVERSAL MOTORS

Powerful industrial MA II universal motors are ideal for pumping thin-bodied to slightly viscous, aggressive and non-flammable fluids. Double protection is even better. Robust and durable: The inner part of the double wall housing is made of aluminium, the outer part is made of special  chemical proof plastic. Aggressive and corrosive vapours cannot
intrude into the inner part of the motor. The air
flow for cooling the motor is conducted between
the two walls of the housing.



Robust industrial construction

Totally Enclosed TEFC - IP54

Double wall housing

Electrically efficient, lower power required

Electrically double insulated

Thermal over current release

Double-pole ON/OFF switch

Not explosion proof

Excellent for harsh site work



Choice of 3 power ratings

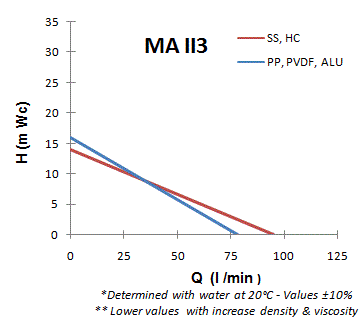

• MA II3 - 460W - 230V

- Maximum Fluid Density: 1.6 kg/dm³ Max.

- Fluid Viscosity: 500 cPs Max for PP, PVDF, ALU

- Fluid Viscosity: 350 cPs Max for SS, HC

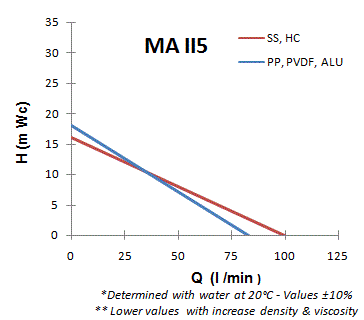

• MA II5 - 575W - 230V

- Maximum Fluid Density: 1.8 kg/dm³ Max.

- Fluid Viscosity: 800 cPs Max for PP, PVDF, ALU

- Fluid Viscosity: 700 cPs Max for SS, HC

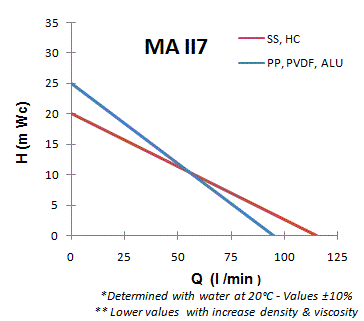

• MA II7 - 795W - 230V

- Maximum Fluid Density: 1.9 kg/dm³ Max.

- Fluid Viscosity: 800 cPs Max for PP, PVDF, ALU

- Fluid Viscosity: 500 cPs Max for SS, HC







*** Slightly different values for RE & MP pumps

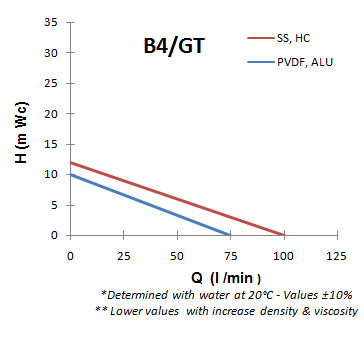

B4/GT UNIVERSAL 3-PHASE MOTOR

Geared motor. The long distance runner. Extremely quiet, 24/7 smooth operation. Great for permanent installation



Robust industrial construction

Totally Enclosed TEFC - IP54

Mounted ON/OFF switch

Not explosion proof

Excellent for harsh site work

Class IE3 efficiency, lower power required



• B4/GT - 750W - 400V

- Maximum Fluid Density: 2.2 kg/dm³ Max.

- Fluid Viscosity: 400 cPs Max for PP, PVDF, ALU

- Fluid Viscosity: 500 cPs Max for SS, HC



*** Slightly different values for RE & MP pumps

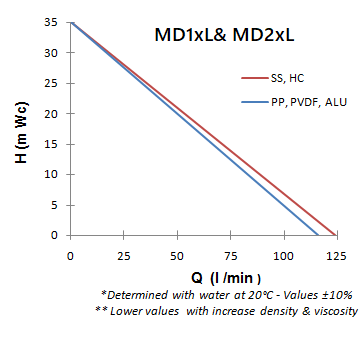

MDxL AIR POWERED MOTORS

Powerful, Simple and efficient. Explosion Proof compact design. Overload proof. Delivery flow can be easily regulated. Can run without lubrication, extended life with lubrication.



ATEX Certified

Fluid Viscosity: 1000 cPs Max

Maximum Fluid Density: 2.8 kg/dm³ Max.



• MD1xL - 1000W - AIR DRIVEN

- No hand grip, Ball Valve on/off

• MD2xL - 1000W - AIR DRIVEN

- With hand grip, Infinity flow regulation throttle lever

*** Slightly different values for RE & MP pumps


  PURE DRUM PUMPS



Pumps in contact with food products are considered to be "food contact materials" and are thus subject to strict legal regulations. The new Lutz PURE series includes products which are in conformity with ATEX Directive as well as the FDA (21 CFR 177)Approval and the European Regulation according to 1935/2004/EC.

  • Construction: Food quality Stainless Steel (1.4571)

  • Sealing Options:

    • SL - Sealless

    • MS - Carbon/Ceramic with EPDM or FPM option

  • Discharge: DN32 Tri-Clamp Flange

  • Lubrication: None

  • Performance: Same as the industrial drum pumps

  • Optional Hose Connectors: Gasket EPDM or FPM option

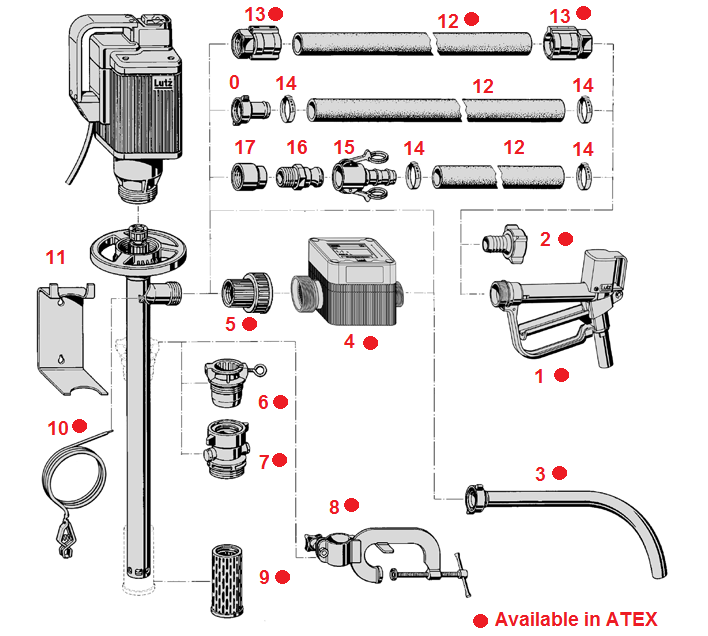

Optional Accessories

0 - Included for non-PURE

1 - Chemical nozzles

2 - Hose tail and wing nut

3 - Rigid spout

4 - Flow meters

5 - Pump/Meter connectors

6 - Normal drum adapter

7 - Emission proof drum adapter

8 - Pump clamp

9   - Foot strainer

10 - Static earthing cable

11 - Pump wall storage bracket

12 - Chemical hosing

13 - Ex Hose connections

14 - SS hose clamps

15 - Quick couplers (Female)

16 - Quick couplers (Male)

17 - Connection adapters
