You have landed on the Lutz Laboratory & Light Industry Drum Pumps page

Lutz Pumpen Logo
Drum Pump Range

Product  Range
Manufactured in Germany



Light Industrial Laboratory Drum Pumps

B2-BATTERY

Cordless Drum Pumps



Perfect for decanting neutral and hazardous liquids in places where there is no electricity



Performance

Flow rates up to 80 l/min

Delivery head up to 8 m

Based on Water @ 20°C without hose



B2 Cordless Motor

  • Manufactured by Lutz

  • Brushless DC (BLDC)

  • High efficiency up to 70%

  • 260W Output power

  • Infinite speed adjustment

  • Automatic overload shutdown





B2 Battery

  • Manufactured by GreenWorks®

  • Voltage 24V

  • Type Lithium-Ion

  • Available capacity

    • 4Ah / 43.2 Wh

    • 8Ah / 86.4 Wh (Coming Soon)




B2 Pump Material Construction Options

Suited to low viscosity non-flammable liquids with the following properties;

Density up to 1.6 kg/dm³ Maximum

Viscosity up to 400 mPas Maximum

Stainless Steel ( SS )

Transformer Oil Compressor Oil

Hydraulic Oils

Engine Lubicant

Diesel

Antifreeze

Cleaners







Polypropylene ( PP )

Battery acid

Ammonia water

Photographic Fluid

Glycols

Phosphoric acid

Hydrochloric acid

Hydrogen peroxide

Polyvinylidene Flouride (PVDF)

Chloric acid,

Chromic acid,

Sulphuric acid,

Nitric acid,

Hydrofluoric acid

Sodium hypochlorite

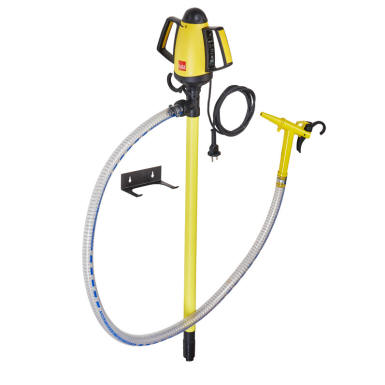

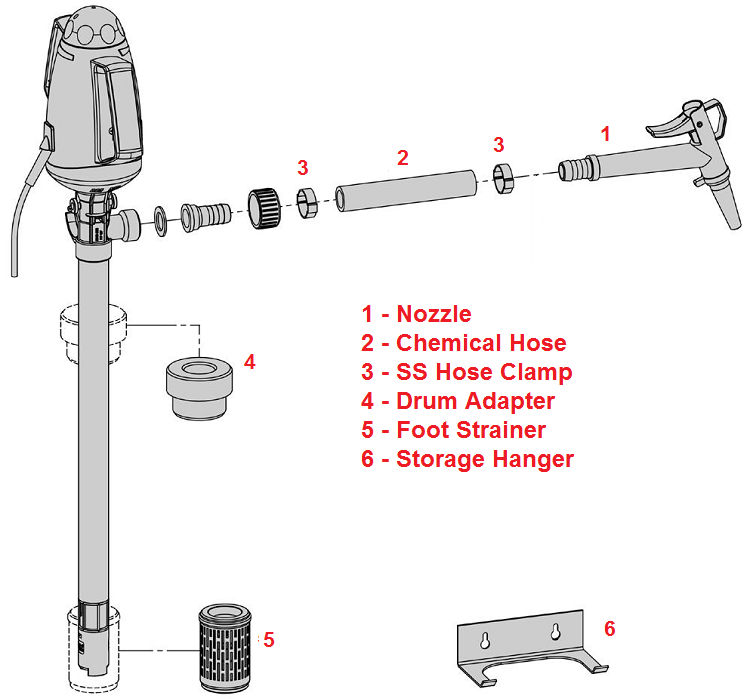

Recommended Accessories

Delivery Hose & Nozzle

Volume Meter

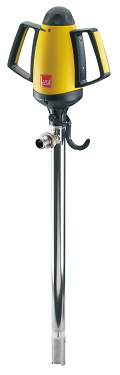

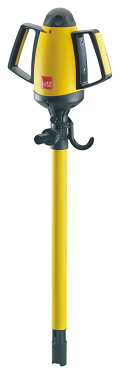

B2-VARIO

Electric 230V

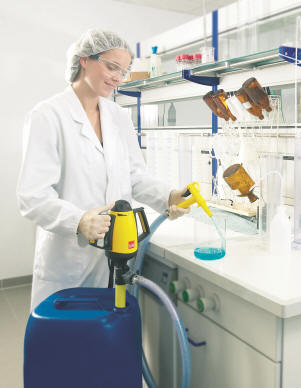

Ideal for labs and an entry level pump for smaller volume handling of;

Non-Flammable neutral or aggressive and corrosive liquids in drums, containers and other vessels
  • Choice of 3 Different Materials of Pump Construction, each material selected for a specific type of liquid:

    • PP/HC - Polypropylene (Yellow Plastic)

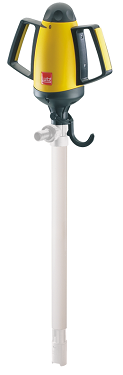

      PVDF/HC - Polyvinylidene fluoride (White Plastic)

    • SS - Stainless Steel (1.4571)

  • Repair and service friendly design with a small number of components.

  • Available in a 500mm or 1000mm length (700mm On Request)

  • Pumps do not have seals

  • Pumping performance:

    • Flow rate up to 75 l/min

    • Delivery up to 7 mWC



  • Fluid properties:

    • Density up to 1.3 kg/dm3

    • Viscosity up to 300 cPs



  • Variable speed on/off control switch

  • Motor 200W 230V

  PVDF PP SS
