Lutz Low Viscosity Mixing & Pumping Drum Pumps

Drum Pump Range

Product Range

Manufactured in Germany

Mixing & Pumping Drum Pumps

Some fluids take offence at being kept on hold. They will simply sediment. We are referring to numerous emulsions, dispersions and suspensions used in industrial and trade environments

MP pump tubes will make sure thin bodied neutral, aggressive and corrosive liquids in drums or containers are thoroughly mixed before decanting.

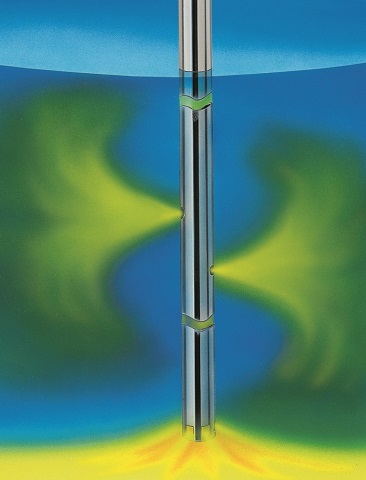

Desired Turbulence; The special flow conditions in the container generated by the pump tube for mixing and pumping thoroughly remix and homogenize sedimented media - even in remote corners of the container bottom. In a flash, you will homogenized mix is ready for further processing

All the functions in one go; The construction comprising an immersion tube and a locking

mechanism that has been tried and tested in practice provides for opening and closing of the mixing ports. The proven design facilitates simultaneous mixing and pumping. Of course, it's your choice. With the discharge closed off with a nozzle or valve, you can also mix first and pump afterwards.

Open - Mix & Pump

Closed - Pump Only

Tailor Made Solutions to Container Decanting

PUMP CONSTRUCTION:
Choice of 2 Different Materials of Pump Construction, each material selected for a specific type of liquid:
- PP - Polypropylene (Yellow / Grey Plastic)
- SS - Stainless Steel (1.4571)
- SS PURE - Stainless Steel (1.4571)
MOTOR SECTION:
Choice of Several Motors depending on the density and viscosity of the liquids as well as the type of environment in which the pump will be used:
- NON FLAMMABLE LIQUIDS & AREAS
  - MI4E - Versatile entry level industrial 230V electric motor.
  - MAII - Robust industrial 230V electric motor with a choice of 3 power ratings.
  - B4/GT - 24/7 quiet operation 400V electric Motor
- FLAMMABLE LIQUIDS & AREAS
  - MEII - Robust industrial Explosion Proof 230V electric motor with a choice of 4 power ratings.
  - MDxL - Air powered motor, very powerful, simple and efficient.
Repair and service friendly design with a small number of components.
Pumps are available without seals or with axial face seals.
High performance in pumping:
- Flow rate up to 210 l/min
- Delivery up to 22 mWC
Fluid properties:
- Density up to 1.9 kg/dm³
- Viscosity up to 850 cPs

MA II5 + MP PP

PURE DRUM PUMPS

Pumps in contact with food products are considered to be "food contact materials" and are thus subject to strict legal regulations. The new Lutz PURE series includes products which are in conformity with ATEX Directive as well as the FDA (21 CFR 177)Approval and the European Regulation according to 1935/2004/EC.

Construction: Food quality Stainless Steel (1.4571)
Sealing Options:
- SL - Sealless
- MS - Carbon/Ceramic with EPDM or FPM option
Discharge: DN32 Tri-Clamp Flange
Lubrication: None
Performance: Same as the industrial drum pumps
Optional Hose Connectors: Gasket EPDM or FPM option
