| | | | Motor Driven High Viscosity Transfer Pumps | Horizontally positioning the pump outside of the container, it is possible to pump flowable viscous liquids out of a stacked IBC or from containers which are not accessible from the top. |
|  | Eccentric Screw Technology |  | Smooth no Pulsation No Shearing of Sensitive Products Very few moving parts Simple Design Used to pump paint, dirty oils, cosmetics, toothpaste, honey, molasses and even cheese spread. Repair and service friendly design with a small number of components and can be stripped for cleaning by loosening one nut.
|
|
|
Flow Rate Models: 25.1 - 25 l/min 75.1 - 75 l/min Bi-directional
Delivery Head: Up to 8 bar Viscosity: Up to 100 000 cPs Fluid Temperature: Up to 140 °C Connections: DN50 Tri-Clamp Flange Construction: Stainless 1.4571/1.4404 Stator Material: PTFE Fluid Seal Options: Mechanical seal Powered by: IEC 400V motor On Request: IEC 400V ATEX motor PURE Construction
|  | B70H Pumps Available on request in the following PURE options
|

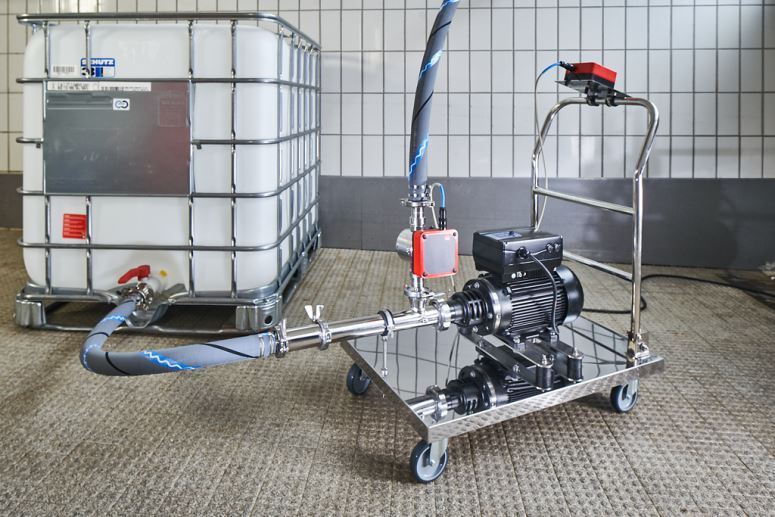

 | | B70H Pump fitted with integrated variable speed motor. Requested extras for this application included a SS trolley, IBC suction hose, volume preset meter and delivery hose |  |
|
